Project 2: Thread Scheduling, Synchronization

Goals

• Practice using common synchronization primitives
• Understand the creation, and lifestyles of user-level threads
• Understand the concept of overlapping I/O and computation
• Understand the tradeoffs between user and kernel-level threads

Background

Simplethreads

For this project you will be using simplethreads. Simplethreads is a user-level thread package which borrows a fair amount of code from from the GNU portable threads package. While you will only have to add code in small/well-defined sections, you will have to develop a general idea of how the package works. See these instructions on how to build, modify, and add tests to the Simplethreads package.

Credits

The Assignment

Part 1: Thread Scheduling

1. An implementation of a simple queue (sthread_queue.h)
2. A context-switch function that, given a new stack pointer, will switch contexts (sthread_ctx.h)
3. A new-stack function that will create and initialize a new stack such that it is ready to run
4. Stub routines for a user-level thread system (sthread_user.c)

1. Data structures to represent threads (struct _sthread in sthread_user.c)
2. A thread creation routine (sthread_user_create())
3. A thread destruction routine (sthread_user_exit())
4. A simple non-preemptive thread scheduler
5. A mechanism for a thread to voluntarily yield, allowing another thread to run (sthread_user_yield())
6. A routine to initialize your data structures (sthread_user_init())

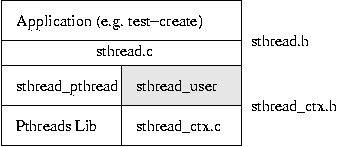

Applications (the top-layer) may not use any routines except those listed in sthread.h. They must not know how the threads are implemented; they simply request threads be created (after initializing the library), and maybe request yields/exits. For example, they have no access to sthread_queue. Nor do they keep lists of running threads around; that is the job of the grey box.

Similarly, your grey box - sthread_user.c - should not need to know how sthread_ctx is implemented. Do not attempt to modify the sthread_ctx_t directly; use the routines declared in sthread_ctx.h.

1. Figure out what each function you need to implement does. Look at some of the test programs to see usage examples.
2. Examine the supporting routines we've provided (primarily in sthread_queue.h and sthread_ctx.h).
3. Design your threading algorithm: When are threads put on the ready queue? When are threads removed? Where is sthread_switch called?
4. Figure out how to start a new thread and what to do about the initial thread (the one that calls sthread_user_init).
5. Talk to your fellow students and the TAs about your design.
6. Implement it.
7. Test it. The test programs provided are not adequate; for full confidence in your implementation, you'll need to create some of your own.

• sthread_create should not immediately run the new thread.
• Use the provided routines in sthread_ctx.h. You don't need to write any assembly or try to directly manipulate registers for this assignment, nor is an understanding of the exact layout of the stack required.
• If the routine passed to sthread_create() finishes (returns), you need to make sure the thread's resources are cleaned up (i.e. sthread_exit() is called).
• The start routine passed to sthread_new_ctx does not take any arguments (unlike the routine that your sthread_user_create is passed). So you can't create a new stack directly with the user-supplied routine; you need to supply a routine that takes no arguments but somehow winds up invoking the user's routine with the user's argument.
• You should free any resources allocated when a thread exits (whether it exits explicitly, by calling sthread_exit(), or implicitly, because the start routine returns). However, you should not attempt to free the stack of a running thread (note: to free a stack, use shread_free_ctx()). This requires a few tricks.
• Dealing with the initial thread is tricky. You need to make sure that an sthread_t struct is created for it at some point, so it can be scheduled like the other threads. However, it wasn't created by your sthread_user_create() function. Remember that, while a thread is running, the state stored in the sthread_t is garbage (though it is probably important that you have an sthread_t, so you've got some place to put the state when you want to stop the thread).
• Be very careful using any local variables after calling sthread_switch() as their values are quite likely different from what they were before (you're on a different stack).
• While globals are bad in general, there will be places in this assignment where they are necessary.
• When debugging with gdb(1), you may see messages like [New Thread 1024 (LWP 18771)]. These messages refer to kernel threads.

Part 2: Mutexes and Condition Variables

• Design data structures for mutexs (struct _sthread_mutex) and condition variables (struct _sthread_cond)
• Implement the mutex operations (sthread_user_mutex_*())
• Implement the condition variable operations (sthread_user_cond_*())
• sthread_user_cond_wait atomically releases the given mutex, and causes the calling thread to block on the condition variable. Upon successful completion, the mutex should be locked (owned) by the calling thread. It is assumed that the calling thread owns the mutex when it calls sthread_user_cond_wait.

• Figure out how to block a thread, making it wait on some queue. How do you get the calling thread? How do you switch out of it? How will you wind up back in it?
• Locks do not immediately switch threads when unlocked.

Part 3: Synchronization Problem

There are several famous synchronization problems in computer science. For part 3, your job is to implement a "food services" problem, an instance of the better-known multiple-producer, multiple-consumer problem. There are N cooks (each a separate thread) that constantly produce burgers. We'll assume for debugging purposes that each burger has a unique id assigned to it at the time it is created. The cooks place their burgers on a stack. Each time a cook produces a burger, she prints a message containing the id of the burger just cooked. There are M hungry students (each a separate thread) that constantly grab burgers from the stack and eat them. Each time a student eats a burger, she prints a message containing the id of the burger she just ate. Ensure, for health and sanity reasons, that a given burger is consumed at most once by at most one student.

Note that you are implementing an application now. That means the only interface to the thread system that you should use is that described by sthread.h (as distributed in the tar.gz). Do not use functions internal to sthreads directly from your solution to this problem.

Place your solution in a new file called test-burgers.c in the test directory. The program should take 3 command-line arguments: N, M, and the total number of burgers to cook. For examples, test-burgers 5 10 100 should simulate 5 cooks, 10 students, and 100 burgers. The Simplethreads instructions tell you how to add a test program.

• Review the textbook sections on synchronization.
• Due to non-preemptive nature of user-level sthreads, you should think about critical points in your code that must contain sthread_yield() calls, as well as ways to simulate an unexpected timer interrupt and context switch (perhaps using randomness and sthread_yield() calls).
• To test your threads functionality, don't forget that you can recompile the sthreads library to use POSIX threads (use the --with-pthreads argument as shown above).

Part 4: Multithreaded Web Server

1. Web server starts and listens (see listen(2)) for incoming connections.
2. A client (i.e. web browser) opens a connection.
3. The server accepts (see accept(2)) the connection.
4. The client sends an http request.
5. The server services the request by:
   1. Parsing the request.
   2. Finding the requested file.
   3. Reading the file.
   4. Sending a set of http headers, followed by the contents of the file, to the client.
   5. Closing the connection.
6. The client displays the file to the user.

Testing your webserver

#!/s/std/bin/tcsh

set i=0
while ( $i < 100 )
        wget http://royal21.cs.wisc.edu:9493 -O temp &
        set i = `expr $i + 1`
end

Handin

In your top-level simplethreads directory, run make dist. This will produce a file named simplethreads-1.10.tar.gz. Run tar tvzf simplethreads-1.10.tar.gz and check to make sure all simplethreads files, and any new files you have added, are listed. Copy the tar.gz file to ~cs537-2/handin/NAME/p2 where NAME is the login name of one member of your team. Hand in one copy per group. After the deadline you will lose permissions to write to your handin directory. Remember that late projects are not accepted. Plan accordingly.

As with the first project, most of your grade will be determined by how well your implementation works. We will run your code on a suite of test cases, some will test correct execution, other error cases. Exercise your program's capabilities thoroughly (read try to break it). Develop on whichever system you like, though make sure your code works on an emperor or royal machine as that is where it will be tested.
