Graph Traversal

• Just as there were techniques for traversing trees, there are techniques for traversing a graph
• Start at one vertex; do something there; go to next vertex; do something there; until we have visited all vertices
• Be careful to avoid re-visiting nodes
  • We have to mark a node as having been visited
  • When drawing this, we would "color" each node

Breadth-first search

• Goal: always visit adjacent nodes first
• Color scheme:
  • white: a newly discovered node
  • gray: a discovered node which has not been completely processed
  • black: a completely processed node

  BFS(G, s)
  Input: G, a graph; s, the source vertex from which to begin BFS
  Purpose: visits all vertices of G reachable from s

      for each vertex v in Vertices(G)
          color[v] = white
      color[s] = gray
      enqueue s into Q
      while Q is not empty
          v = Q.peek()
          for each u adjacent to v
              if color[u] = white     // Found a new node
                  color[u] = gray     // Mark it as discovered
                  enqueue u into Q    // Enqueue for later exploration
          dequeue from Q
          color[v] = black            // Mark v as fully explored


• Example (note: when deciding which vertex to next visit, choose the lower numbered vertex):

• If we were to print nodes in breadth-first order, starting from 0, we would get: 0, 1, 5, 3, 4, 2

Depth First Search

• Start at one vertex: begin exploring it by going to one neighbor
  • begin exploring a single neighbor of this new vertex
    • begin exploring a single neighbor from this node
• Backtrack when necessary
• Uses recursion

  DFS(G, s)
  Input: A graph, G; a source vertex s
  Purpose: visits all vertices of G reachable from s

      for each vertex v in Vertices(G)
          color[v] = white
      DFS_Visit(s)


  DFS_Visit(v)
  Input: the node currently being visited, v
  Postcondition: All nodes reachable from v will have been visited

      color[v] = gray             // Mark v as discovered
      for each u adjacent to v
          if color[u] == white
              DFS_Visit(u)        // Found a new node; explore it
      color[v] = black            // Mark v as fully explored


• Example:

Topological Sort

• If we have a DAG, we can "topologically sort our graph"
• Produces an "ordered graph"
  • If G contains an edge (u, v), then u appears before v when ordered
• How: perform a slightly modified DFS
  • Need new data structures for "discovery time" (d), "finishing time" (f)
  • Need to visit all nodes; not starting from a specific source
• Find finishing time from modified DFS; as each vertex is finished, insert node at front of linked list

  DFS(G, s)
  Input: A Graph, G; a source node s
  Purpose: visits all nodes of G reachable from s

      time = 0
      for each vertex v in Vertices(G)
          color[v] = white
      for each vertex v in Vertices(G)
          if color[v] == white
  	    DFS_Visit(v)


  DFS_Visit(v)
  Input: the node to visit, v
  Postcondition: All nodes reachable from v will have been visited

      color[v] = gray             // Mark v as discovered
      time = time + 1
      d[v] = time
      for each u adjacent to v
          if color[u] == white
              DFS_Visit(u)        // Found a new node; explore it
      color[v] = black            // Mark v as fully explored
      time = time + 1
      f[v] = time


• Example: Getting dressed (borrowed from Introduction to Algorithms by Cormen, Leiserson and Rivest)
  • Getting dressed in the morning, there are certain things I have to put on before I can put something else on.

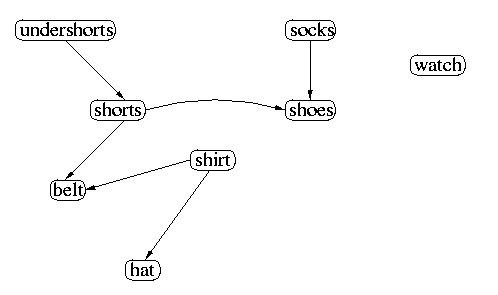

  • Represent this as a graph:

  • A vertex is everything I need to put on
  • An edge means that after I have that item on, I can put on the destination article.

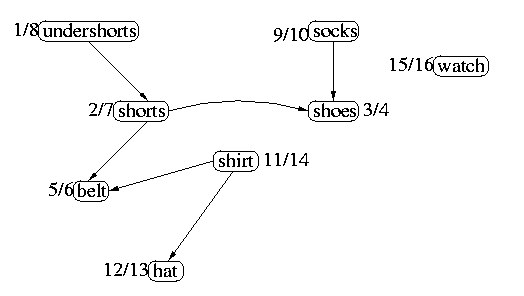

  • Below is the modified DFS with finishing times

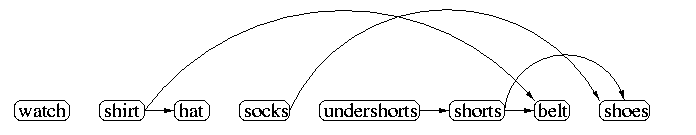

  • I can line up my clothes before I go to bed so that I know in what order to put things on:
