Primary contact for this homework: Junaid Khalid [junaid AT cs D0T wisc D0T edu ]
You must do this homework in groups of two. Please write the full name and the student id of each member on every page and staple multiple pages together.
Problem 1 (2 points)
Convert the following string of bits into ASCII code.
-
01010000 01110010 01101111 01100010 01101100 01100101 01101101 00100000 00110001
Problem 2 (3 points)
Using 8-bit ASCII, represent the following null-terminated string in both binary and hexadecimal (Only convert the characters between the quotation marks.)
-
"HomeWork 3"
Problem 3 (5 points)
Draw a logic circuit which corresponds to the following logic expression. Your circuit can only use 2-input AND, 2-input OR, and NOT gates.
-
(NOT(A OR B )) AND (NOT(B) OR NOT(C)) AND (NOT(NOT(D) OR E ))
Problem 4 (5 points)
Given the logic equation Z = (A AND B) OR C
-
Fill out the truth table for Z
-
Draw the transistor level circuit for Z using minimum number of transistor (Hint: Use DeMorgan's Law)
Problem 5 (5 points)

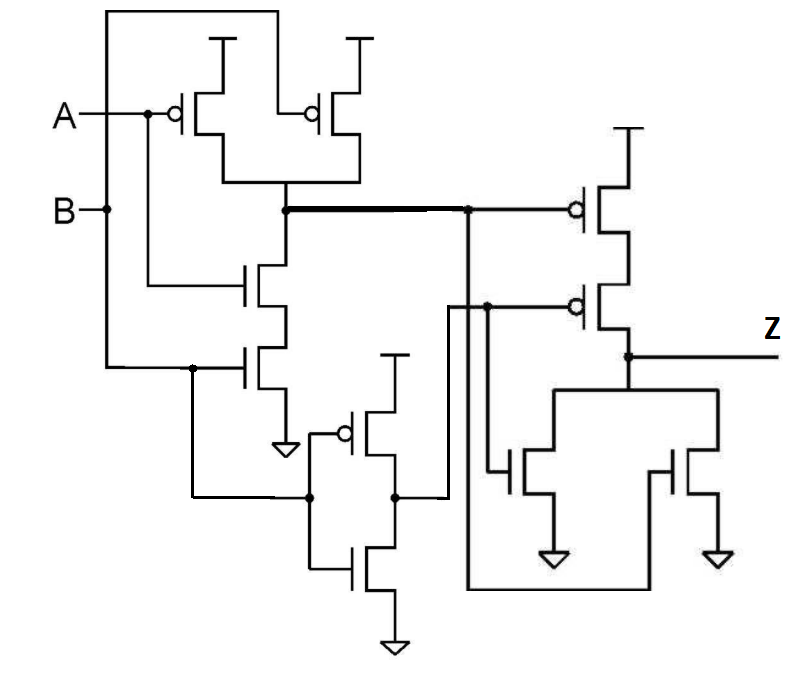

Given the following transistor level circuit:
-
Fill out the truth table for Z in terms of A and B
-
Draw the gate level circuit for Z in terms of A and B
Problem 6 (5 points)
Given the logic circuit below
-
Fill in the truth table for the output value Z
-
Express Z in terms of A, B and C
Problem 7 (5 points)
Given the following truth table for function Z and inputs A, B, and C:
A B C Z
0 0 0 0
0 0 1 0
0 1 0 1
0 1 1 0
1 0 0 0
1 0 1 1
1 1 0 0
1 1 1 1
-
Draw the gate-level circuit using NOT, 3-input AND and OR gates.
-
Draw the gate-level circuit using NOT and NAND gates.
