XJYD-LIPO

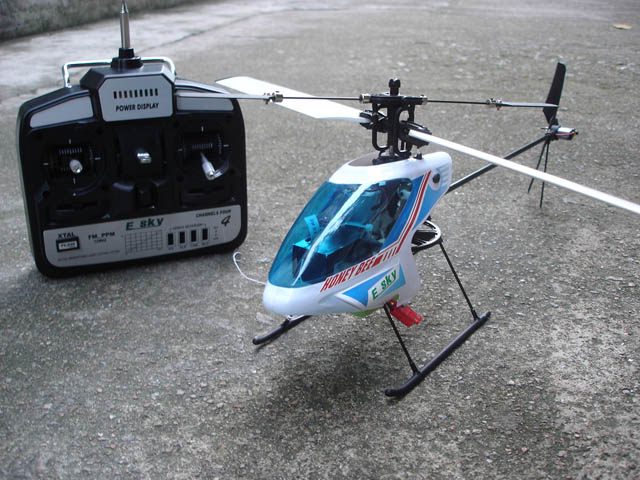

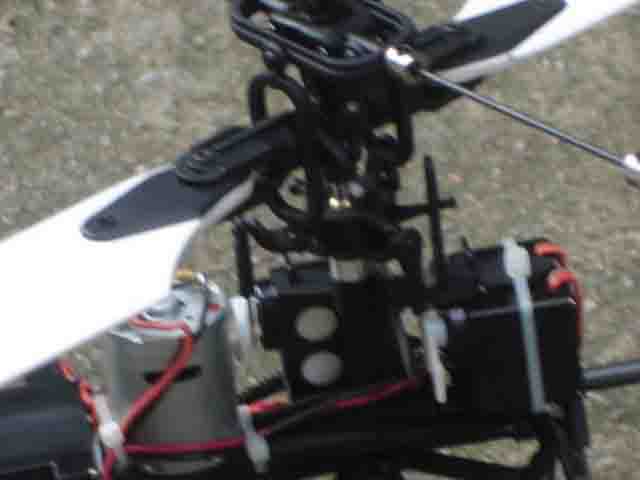

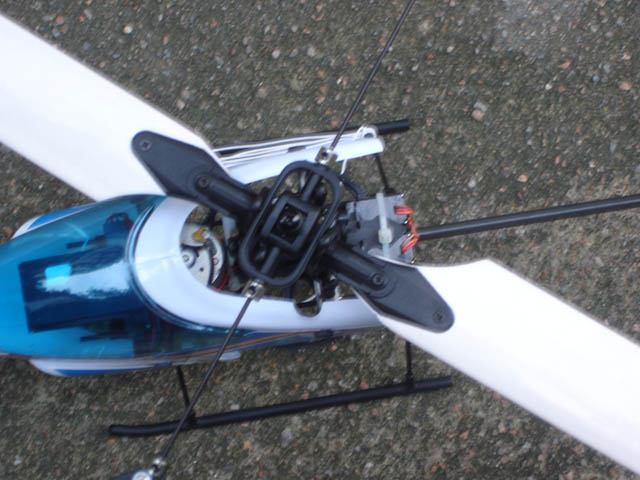

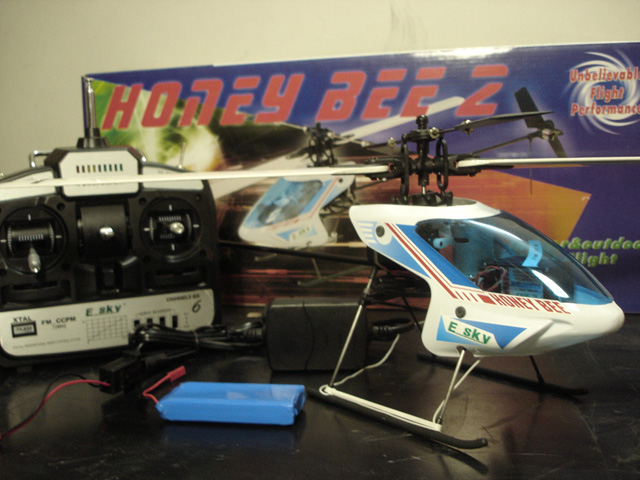

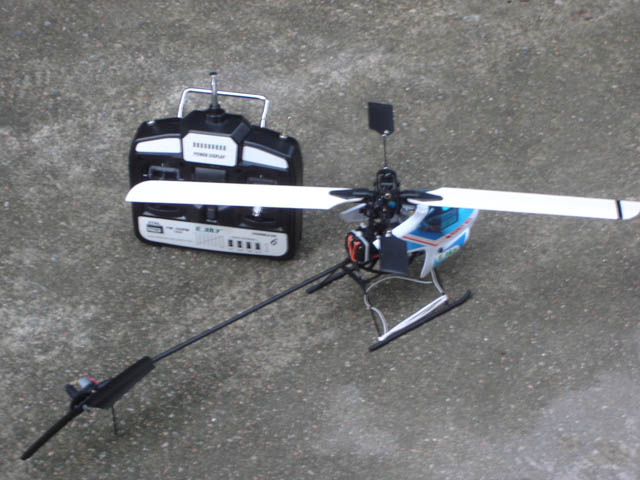

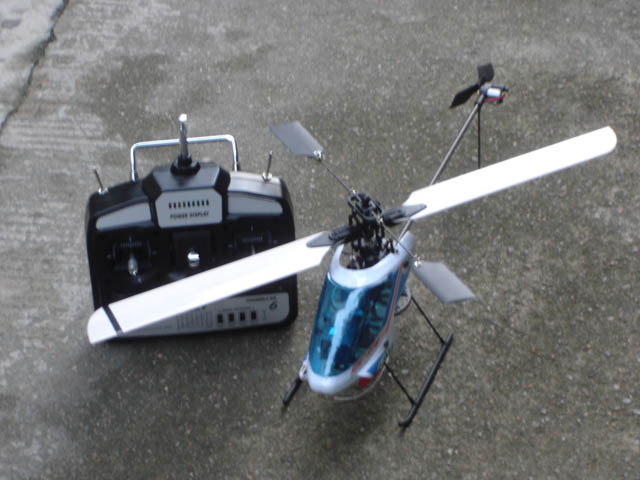

E-Sky 3D Helicopter, 6-Channel

Dimensions (mm):
(L) 520 x (W) 510 x (H) 160
* Rotary Wing Span = 2ft, length = 1.5 ft
* Powerful Main and Tail Motors
* High Quality 6 Channel R/C Set included,
complete Left / Right, Up / Down,
Forward / Backward and Pitch Control(RUDDER,
AILERON, ELEVATOR, PITCH AND THROTTLE )
* Upside down flying - New Feature.
* 6 CH Transmitter included, Mode 1 or Mode 2
Left Hand Throttle
* Powered by 11.1V 1000mAh Li-ion Poly re-chargeable battery
* Easy Assembly , READY TO FLY
* Over 20mins Flight time for each charge
* Suitable for Indoor/Backyard/Park

Video1 Video2

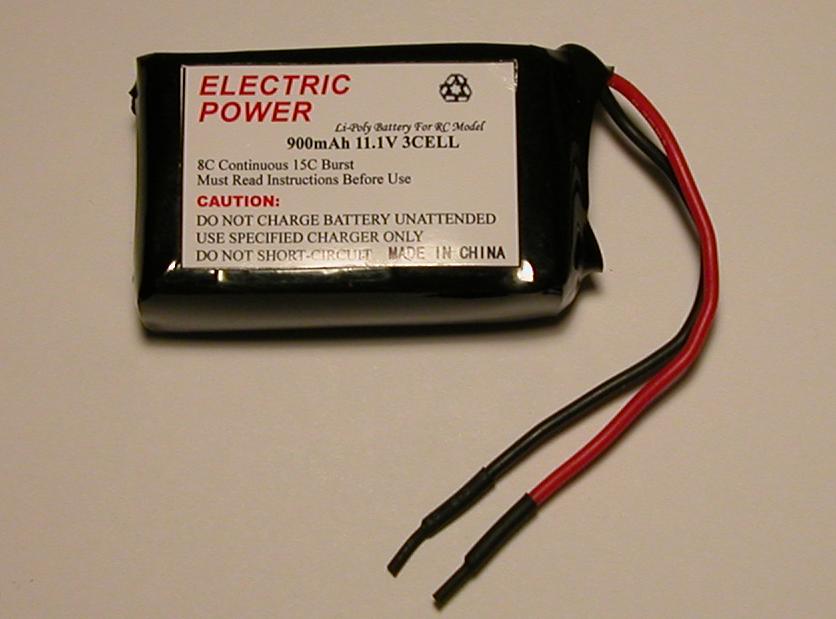

900mAh 11.1V 3-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 56 x 34 x 18 (Inch): 1.9' x 1.4' x 0.7'

Weight:38g (1.3oz)

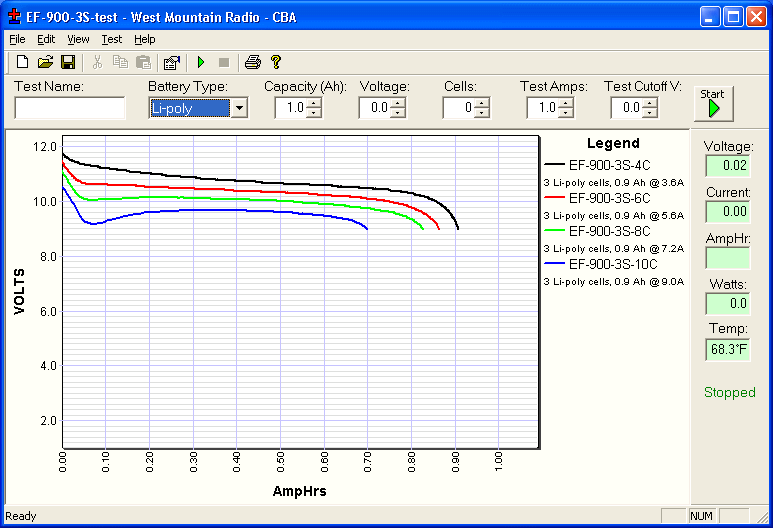

(Data graph, thanks for Milton)

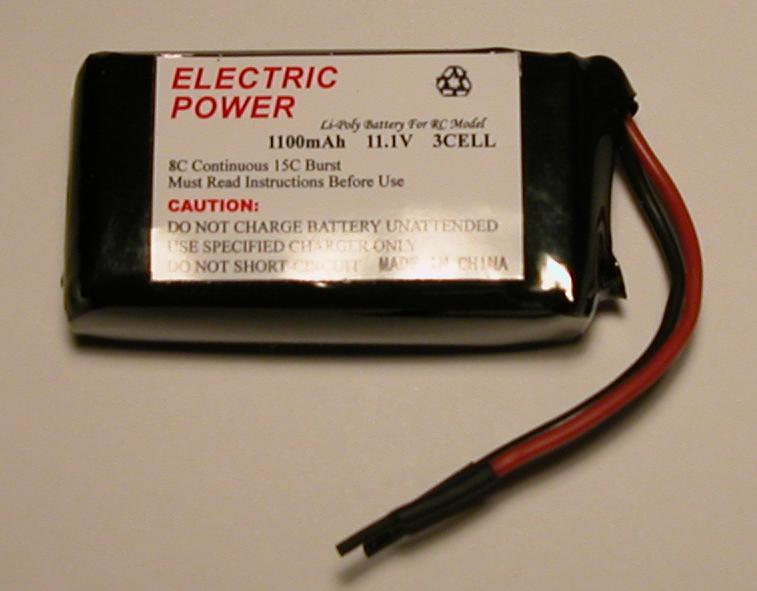

1100mAh 11.1V 3-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 60 x 34 x 20 (Inch): 2.0' x 1.4' x 0.8'

Weight:42g (1.4oz)

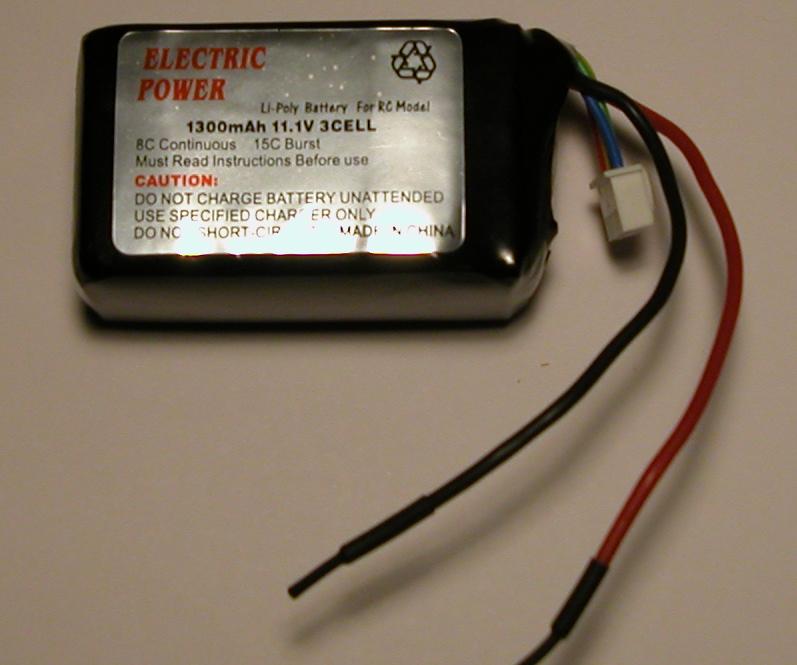

1300mAh 11.1V 3-CELL w/ balancer

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 56 x 34 x 27 (Inch): 2.4' x 1.3' x 1.1'

Weight:114g (4.0oz)

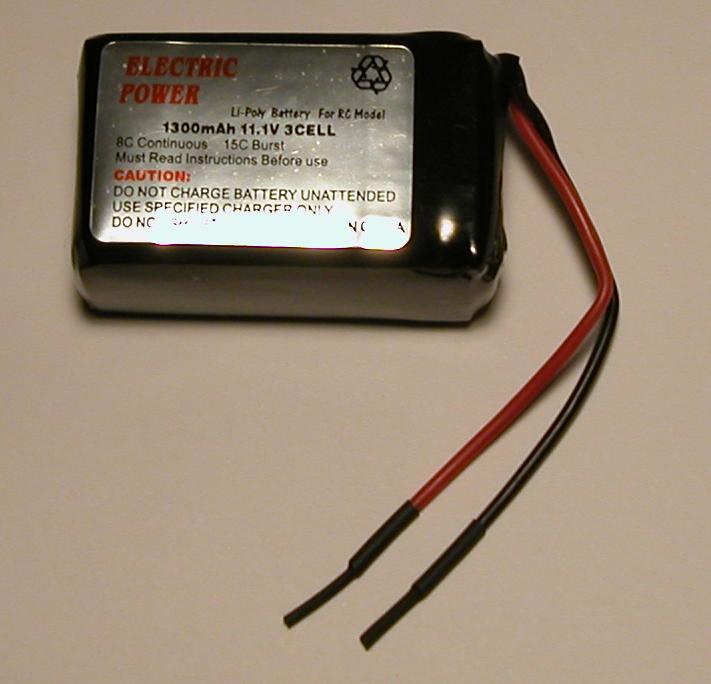

1300mAh 11.1V 3-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 56 x 34 x 27 (Inch): 2.4' x 1.3' x 1.1'

Weight:114g (4.0oz)

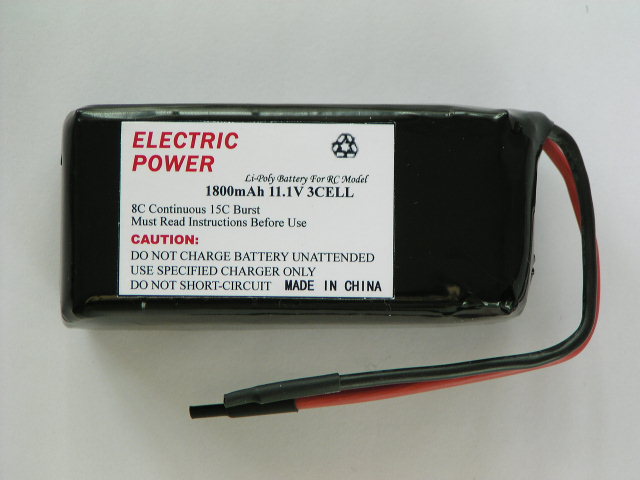

1800mAh 11.1V 3-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 75 x 34 x 27 (Inch): 3.0' x 1.3' x 1.1'

Weight:132g (4.6oz)

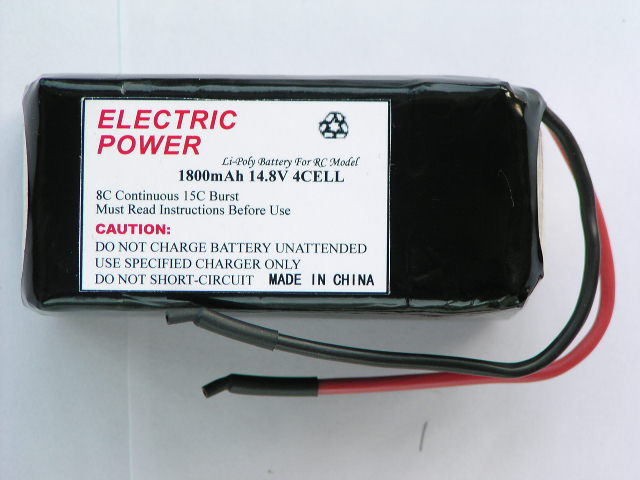

1800mAh 14.8V 4-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 75 x 34 x 36 (Inch): 3.0' x 1.3' x 1.4'

Weight:170g (6.0oz)

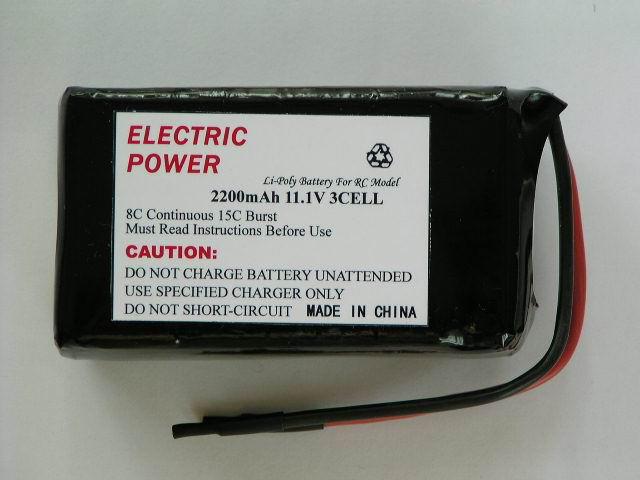

2200mAh 11.1V 3-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 75 x 42 x 27 (Inch): 3.0' x 1.7' x 1.1'

Weight:160g (5.6oz)

(Data graph, thanks for Milton)

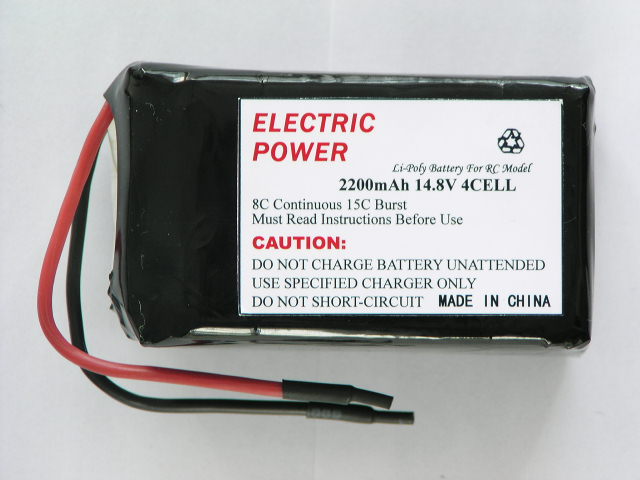

2200mAh 14.8V 4-CELL

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 75 x 42 x 36 (Inch): 3.0' x 1.7' x 1.4'

Weight:208g (7.3oz)

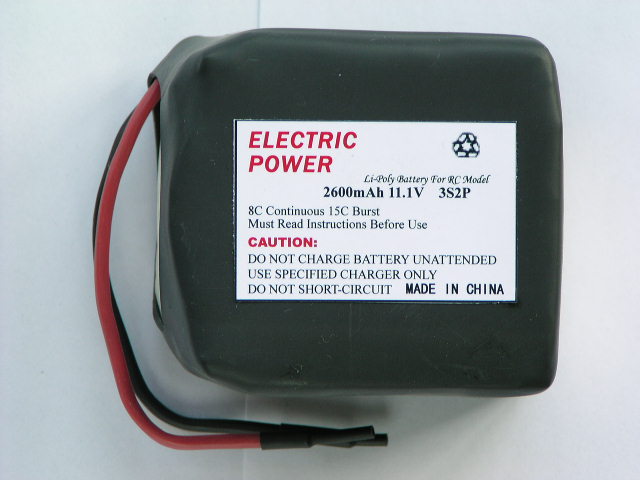

2600mAh 11.1V 3S2P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 60 x 34 x 55 (Inch): 2.4' x 1.3' x 2.2'

Weight:195g (6.9oz)

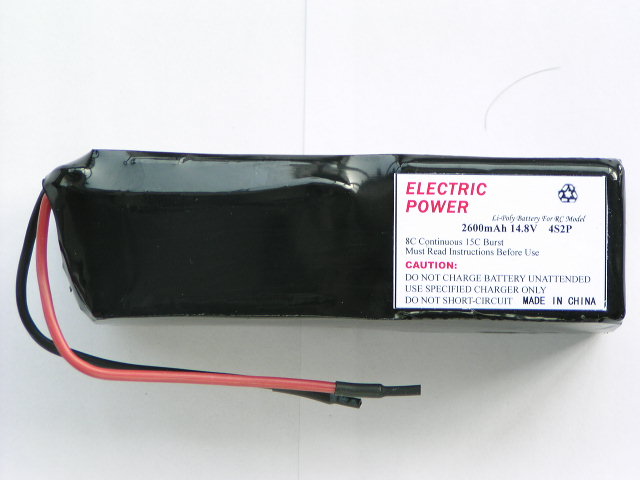

2600mAh 14.8V 4S2P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 120 x 34 x 40 (Inch): 4.9' x 1.3' x 1.6'

Weight:248g (8.7oz)

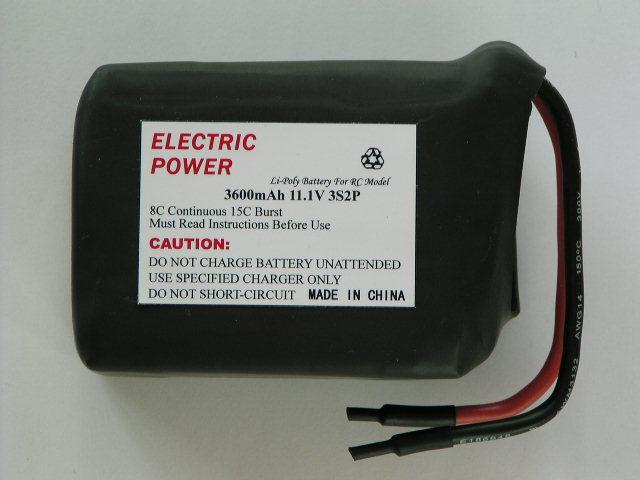

3600mAh 11.1V 3S2P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 75 x 34 x 55 (Inch): 3.0' x 1.3' x 2.2'

Weight:265g (9.3oz)

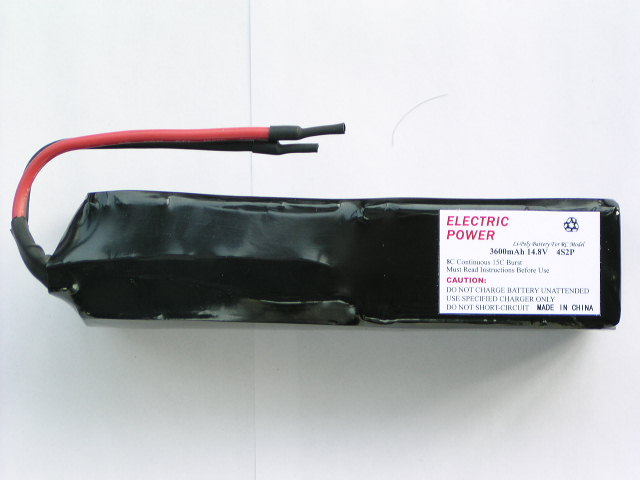

3600mAh 14.8V 4S2P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 145 x 34 x 40 (Inch): 5.9' x 1.3' x 1.6'

Weight:348g (12.3oz)

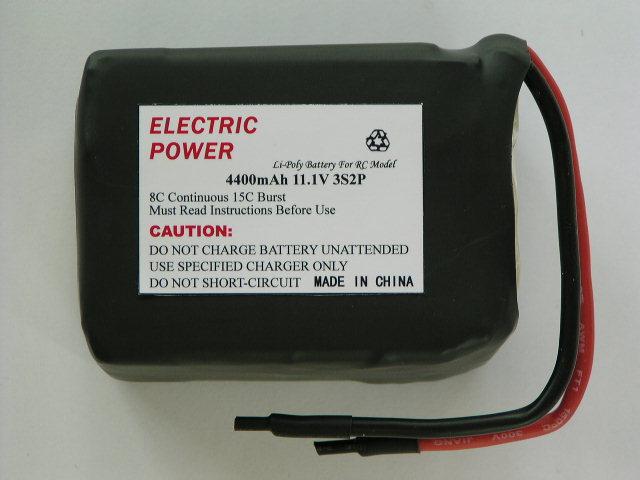

4400mAh 11.1V 3S2P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 75 x 55 x 42 (Inch): 3.0' x 2.2' x 1.7'

Weight:318g (11.2oz)

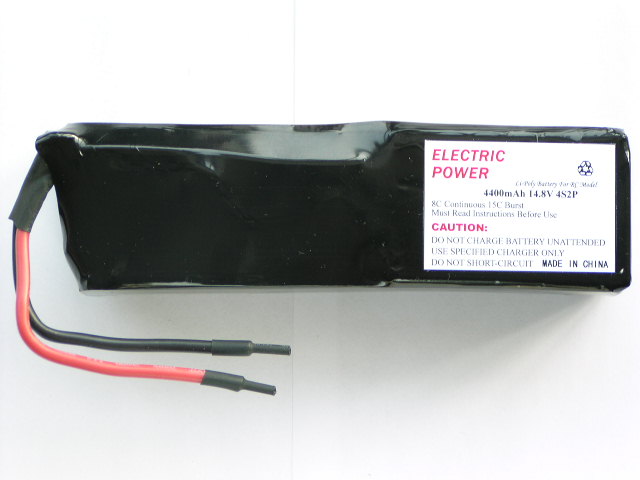

4400mAh 14.8V 4S2P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 145 x 42 x 42 (Inch): 5.9' x 1.7' x 1.7'

Weight:415g (14.6oz)

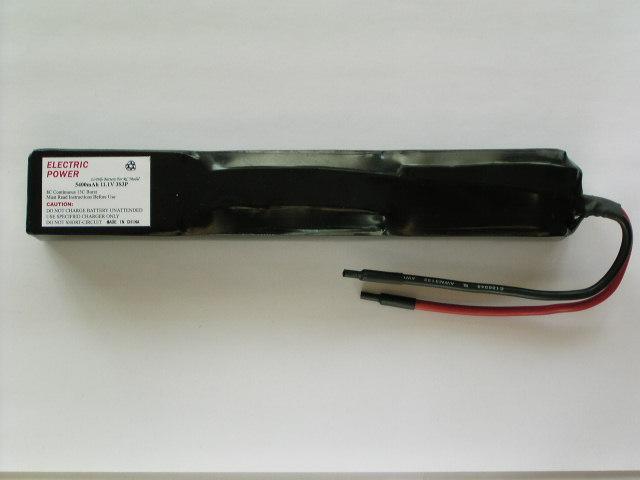

5400mAh 11.1V 3S3P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 216 x 34 x 31 (Inch): 8.8' x 1.3' x 1.2'

Weight:397g (14.0oz)

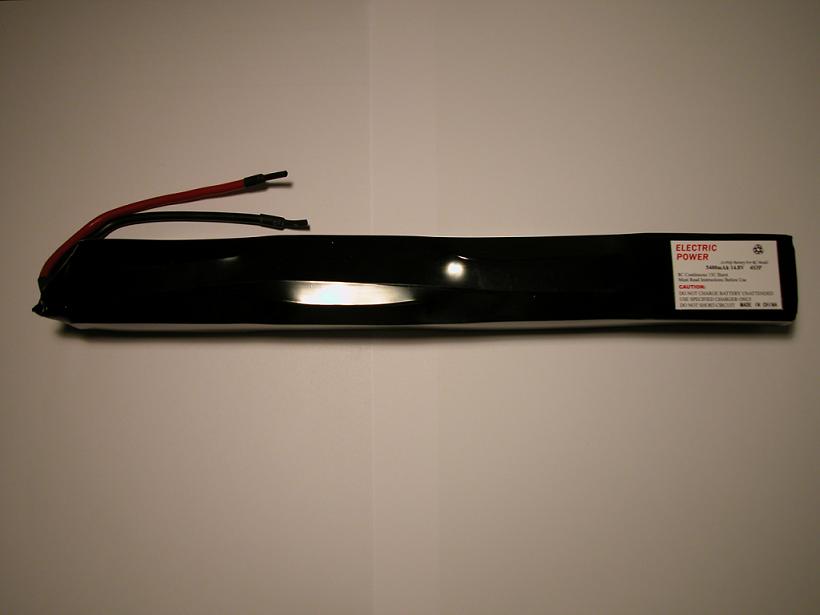

5400mAh 14.8V 4S3P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 288 x 38 x 36 (Inch): 11.8' x 1.6' x 1.5'

Weight:545g (19.2oz)

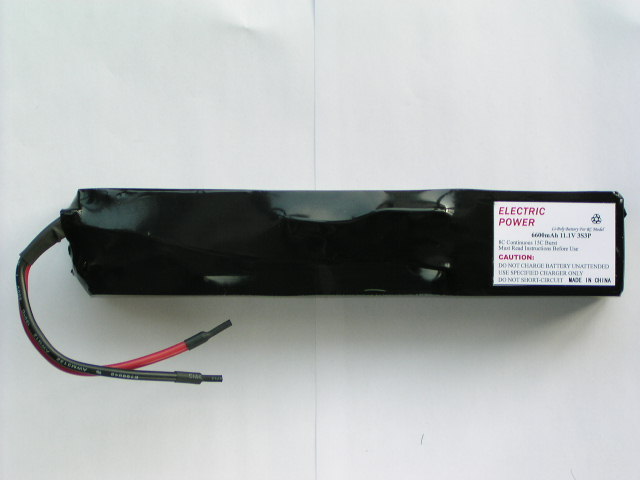

6600mAh 11.1V 3S3P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 220 x 32 x 42 (Inch): 9.0' x 1.2' x 1.7'

Weight:487g (17.2oz)

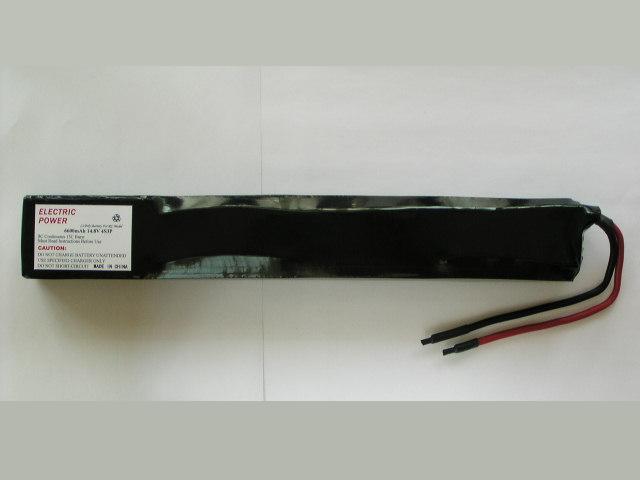

6600mAh 14.8V 4S3P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 288 x 32 x 42 (Inch): 11.8' x 1.2' x 1.7'

Weight:595g (21.0oz)

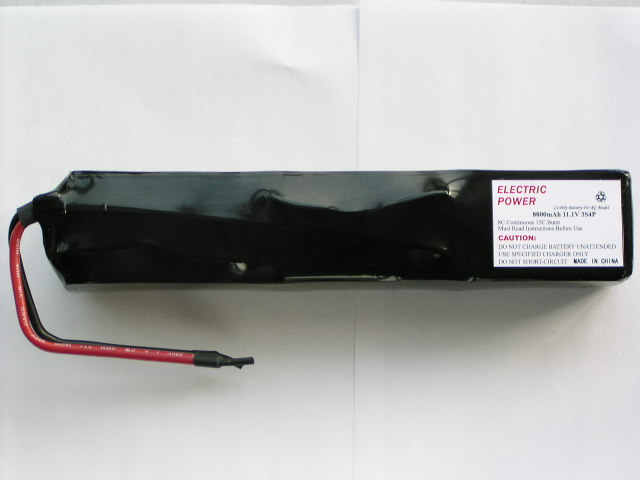

8800mAh 11.1V 3S4P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 220 x 42 x 42 (Inch): 9.0' x 1.7' x 1.7'

Weight:630g (22.2oz)

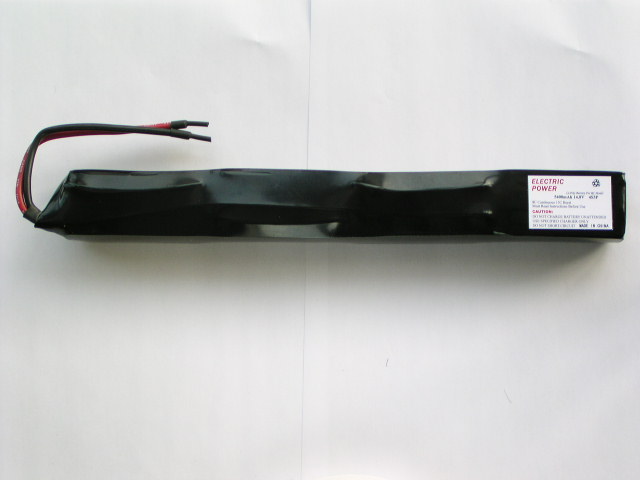

8800mAh 14.8V 4S4P

Discharge Rate:

Continuous: 8C

Burst: 15C

Dimension: (L x W x H)

(mm): 288 x 42 x 42 (Inch): 11.8' x 1.7' x 1.7'

Weight:795g (28.0oz)
