CoverMap Class Reference

#include <CoverMap.h>

List of all members.

Public Member Functions
	~CoverMap ()
void	addConstructedBuilding (Unit *unit)
void	fillTemp (UnitType toBuild, TilePosition buildSpot)
void	clearTemp (UnitType toBuild, TilePosition buildSpot)
void	buildingDestroyed (Unit *unit)
bool	canBuild (UnitType toBuild, TilePosition buildSpot)
bool	positionFree (TilePosition pos)
void	blockPosition (TilePosition buildSpot)
TilePosition	findBuildSpot (UnitType toBuild)
TilePosition	findRefineryBuildSpot (UnitType toBuild, TilePosition start)
TilePosition	findClosestGasWithoutRefinery (UnitType toBuild, TilePosition start)
TilePosition	searchRefinerySpot ()
TilePosition	findExpansionSite ()
void	debug ()
Static Public Member Functions
static CoverMap *	getInstance ()
Static Public Attributes
static const int	BUILDABLE = 1
static const int	BLOCKED = 0
static const int	TEMPBLOCKED = 4
static const int	MINERAL = 2
static const int	GAS = 3

---

Detailed Description

The CoverMap class is used to keep track of the own base and which Tiles that are occupied by buildings, and which Tiles are free and possibly can be used to construct new buildings on.

Internally a matrix of the same size as the map is used. If a Tile is occupied or cant be reached by ground units, the value if the tile is 0. If the Tile can be built on, the value is 1. Buildings typically use up more space in the matrix than their actual size since we want some free space around each building. Different types of buildings have different space requirements.

The CoverMap is implemented as a singleton class. Each class that needs to access CoverMap can request an instance, and all classes shares the same CoverMap instance.

Author: Johan Hagelback (johan.hagelback@gmail.com)

---

Constructor & Destructor Documentation

CoverMap::~CoverMap

(

)

Destructor

---

Member Function Documentation

void CoverMap::addConstructedBuilding

(

Unit *

unit

)

Adds a newly constructed building to the cover map.

Here is the call graph for this function:

void CoverMap::blockPosition

(

TilePosition

buildSpot

)

Blocks a position from being used as a valid buildSpot. Used when a worker is timedout when moving towards the buildSpot.

Here is the call graph for this function:

Here is the caller graph for this function:

void CoverMap::buildingDestroyed

(

Unit *

unit

)

Called when a building is destroyed, to free up the space.

Here is the call graph for this function:

bool CoverMap::canBuild	(	UnitType	toBuild,
		TilePosition	buildSpot
	)

Checks if the specified building type can be built at the buildSpot. True if it can, false otherwise.

Here is the call graph for this function:

void CoverMap::clearTemp	(	UnitType	toBuild,
		TilePosition	buildSpot
	)

Here is the call graph for this function:

Here is the caller graph for this function:

void CoverMap::debug

(

)

Shows debug info on screen.

Here is the call graph for this function:

void CoverMap::fillTemp	(	UnitType	toBuild,
		TilePosition	buildSpot
	)

Here is the caller graph for this function:

TilePosition CoverMap::findBuildSpot

(

UnitType

toBuild

)

Finds and returns a buildSpot for the specified building type. If no buildspot is found, a TilePosition(-1,-1) is returned.

Here is the call graph for this function:

TilePosition CoverMap::findClosestGasWithoutRefinery	(	UnitType	toBuild,
		TilePosition	start
	)

Finds and returns the position of the closest free vespene gas around the specified start position. If no gas vein is found, a TilePosition(-1, -1) is returned.

Here is the call graph for this function:

Here is the caller graph for this function:

TilePosition CoverMap::findExpansionSite

(

)

Returns a position of a suitable site for expansion, i.e. new bases.

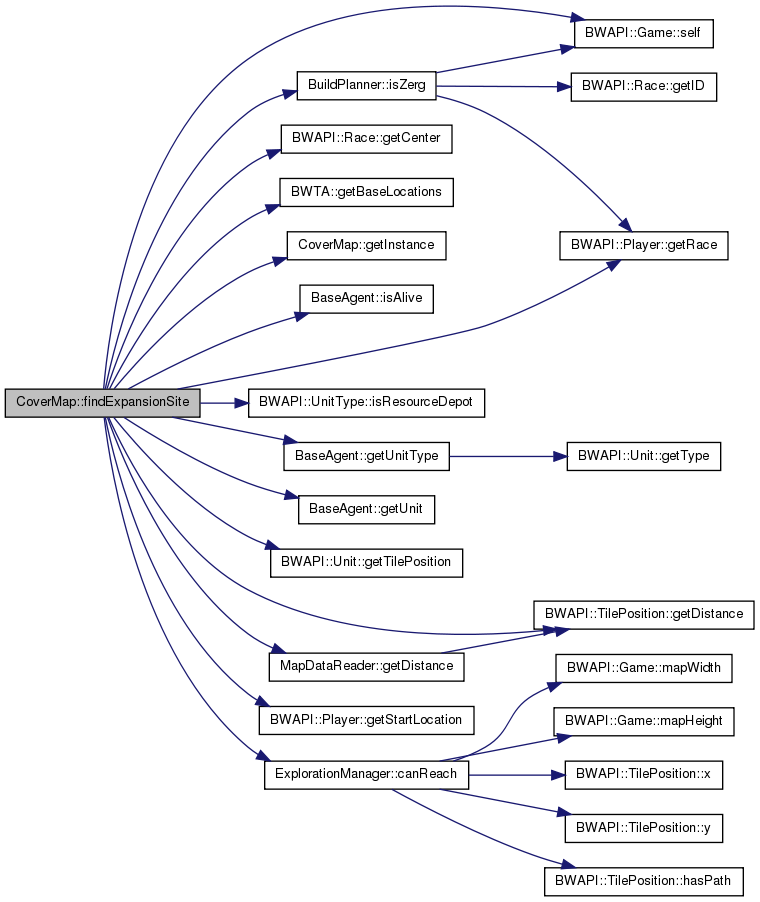

Here is the call graph for this function:

TilePosition CoverMap::findRefineryBuildSpot	(	UnitType	toBuild,
		TilePosition	start
	)

Searches for the closest vespene gas that is not in use. If no gas is sighted, the ExplorationManager is queried.

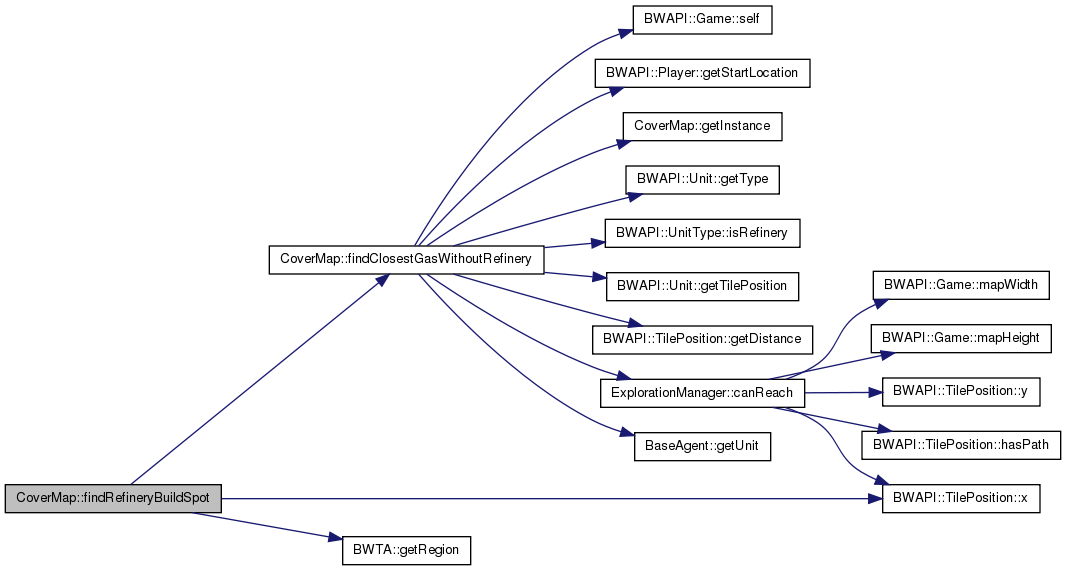

Here is the call graph for this function:

Here is the caller graph for this function:

CoverMap * CoverMap::getInstance

(

)

[static]

Returns the instance of the class.

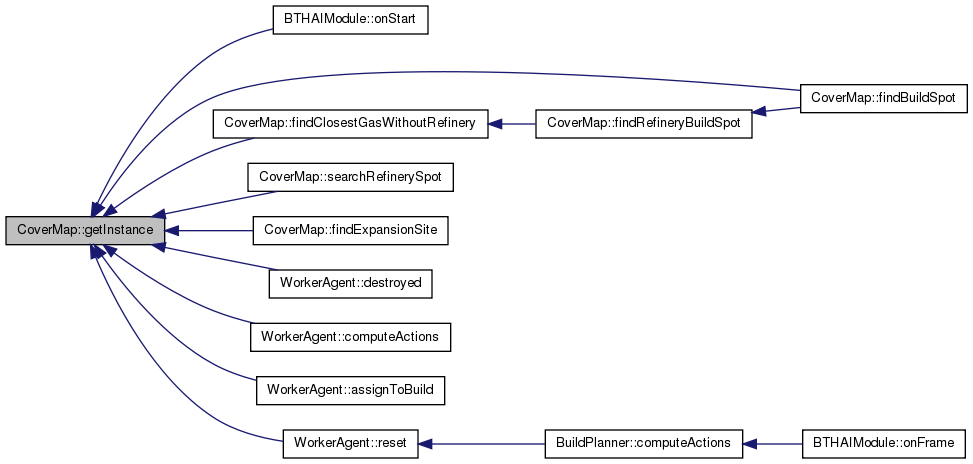

Here is the caller graph for this function:

bool CoverMap::positionFree

(

TilePosition

pos

)

Checks if a position is free.

Here is the call graph for this function:

TilePosition CoverMap::searchRefinerySpot

(

)

Searches for a spot to build a refinery at. Returns TilePosition(-1, -1) if no spot was found.

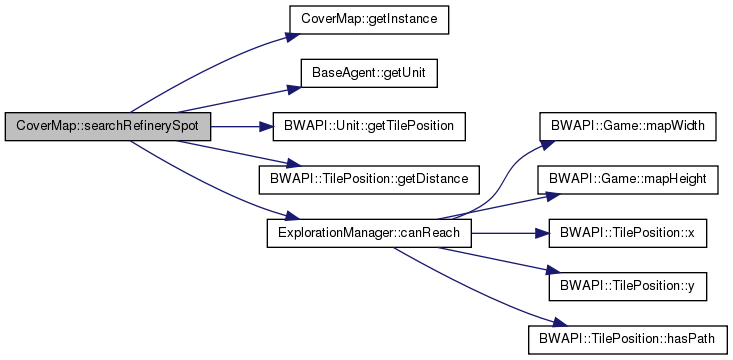

Here is the call graph for this function:

---

Member Data Documentation

const int CoverMap::BLOCKED = 0 [static]

Tile is blocked and cannot be built on.

const int CoverMap::BUILDABLE = 1 [static]

Tile is buildable.

const int CoverMap::GAS = 3 [static]

Tile contains a gas vein.

const int CoverMap::MINERAL = 2 [static]

Tile contains a mineral vein.

const int CoverMap::TEMPBLOCKED = 4 [static]

Tile is temporary blocked and cannot be built on.

---

The documentation for this class was generated from the following files:

• BTHAI/SCProjects/BTHAIModule/Source/CoverMap.h
• BTHAI/SCProjects/BTHAIModule/Source/CoverMap.cpp
