#include <UnitAgent.h>

Inheritance diagram for UnitAgent:

Collaboration diagram for UnitAgent:

Public Member Functions
	UnitAgent (Unit *mUnit)
	UnitAgent ()
void	computeActions ()
void	computeKitingActions ()
string	getTypeName ()
virtual void	setGoal (TilePosition goal)
virtual void	clearGoal ()
int	friendlyUnitsWithinRange ()
int	friendlyUnitsWithinRange (int maxRange)
int	friendlyUnitsWithinRange (TilePosition tilePos, int maxRange)
int	enemyAttackingUnitsWithinRange ()
int	enemyAttackingUnitsWithinRange (int maxRange, TilePosition center)
int	enemyAttackingUnitsWithinRange (UnitType type)
int	enemyUnitsWithinRange (int maxRange)
int	enemyGroundUnitsWithinRange (int maxRange)
int	enemySiegedTanksWithinRange (TilePosition center)
int	enemyGroundAttackingUnitsWithinRange (TilePosition center, int maxRange)
int	enemyAirUnitsWithinRange (int maxRange)
bool	useDefensiveMode ()
int	enemyAirToGroundUnitsWithinRange (int maxRange)
int	enemyAirAttackingUnitsWithinRange (TilePosition center, int maxRange)
int	getGroundRange ()
int	getAirRange ()
void	assignToExplore ()
void	assignToAttack ()
void	assignToDefend ()
bool	isExploring ()
bool	isAttacking ()
bool	isDefending ()
bool	isBunkered ()
Unit *	getClosestOrganicEnemy (int maxRange)
Unit *	getClosestShieldedEnemy (int maxRange)
Unit *	getClosestEnemyTurret (int maxRange)
Unit *	getClosestEnemyAirDefense (int maxRange)
bool	chargeShields ()
virtual void	printInfo ()
Static Public Member Functions
static int	getGroundRange (UnitType type)
static bool	canAttack (UnitType attacker, UnitType target)
static int	getAirRange (UnitType type)
Public Attributes
int	dropped
Protected Attributes
int	currentState
Static Protected Attributes
static const int	ATTACK = 1
static const int	EXPLORE = 2
static const int	DEFEND = 3
static const int	BUNKERED = 4

Detailed Description

The UnitAgent is the base agent class for all agents handling mobile units. If a unit is created and no specific agent for that type is found, the unit is assigned to a UnitAgents. UnitAgents can attack and assist building under enemy fire, but cannot use any special abilities. To use abilities such as Terran Vultures dropping spider mines, an agent implementation for that unit type must be created.

Author: Johan Hagelback (johan.hagelback@gmail.com)

Constructor & Destructor Documentation

UnitAgent::UnitAgent ( Unit * mUnit )

Here is the call graph for this function:

UnitAgent::UnitAgent ( )

Member Function Documentation

void UnitAgent::assignToAttack ( ) [virtual]

Assigns this agent to be in the attack force.

Reimplemented from BaseAgent.

Here is the caller graph for this function:

void UnitAgent::assignToDefend ( ) [virtual]

Assigns this agent to defend the base.

Reimplemented from BaseAgent.

Here is the caller graph for this function:

void UnitAgent::assignToExplore ( ) [virtual]

Assigns this agent to explore the game world.

Reimplemented from BaseAgent.

Here is the caller graph for this function:

bool UnitAgent::canAttack	(	UnitType	attacker,
		UnitType	target
	)		`[static]`

Returns true if the attacker UnitType can attack target UnitType. Note: Does not take spells into account, only weapons.

Here is the call graph for this function:

Here is the caller graph for this function:

bool UnitAgent::chargeShields ( )

Orders a Protoss unit to recharge shields.

Here is the call graph for this function:

Here is the caller graph for this function:

void UnitAgent::clearGoal ( ) [virtual]

Clears the goal for this unit.

Reimplemented from BaseAgent.

Reimplemented in ReaverAgent.

void UnitAgent::computeActions ( ) [virtual]

Called each update to issue orders.

Reimplemented from BaseAgent.

Reimplemented in ScienceVesselAgent, HighTemplarAgent, MarineAgent, DarkTemplarAgent, DefilerAgent, DropshipAgent, FirebatAgent, MedicAgent, VultureAgent, BattlecruiserAgent, GhostAgent, OverlordAgent, QueenAgent, WraithAgent, CorsairAgent, MutaliskAgent, ObserverAgent, ArbiterAgent, CarrierAgent, DevourerAgent, DragoonAgent, GoliathAgent, GuardianAgent, HydraliskAgent, InfestedTerranAgent, LurkerAgent, ReaverAgent, ScourgeAgent, ScoutAgent, ShuttleAgent, UltraliskAgent, ValkyrieAgent, ZealotAgent, ZerglingAgent, and SiegeTankAgent.

Here is the call graph for this function:

void UnitAgent::computeKitingActions ( )

Handles actions for kiting agents.

Here is the call graph for this function:

Here is the caller graph for this function:

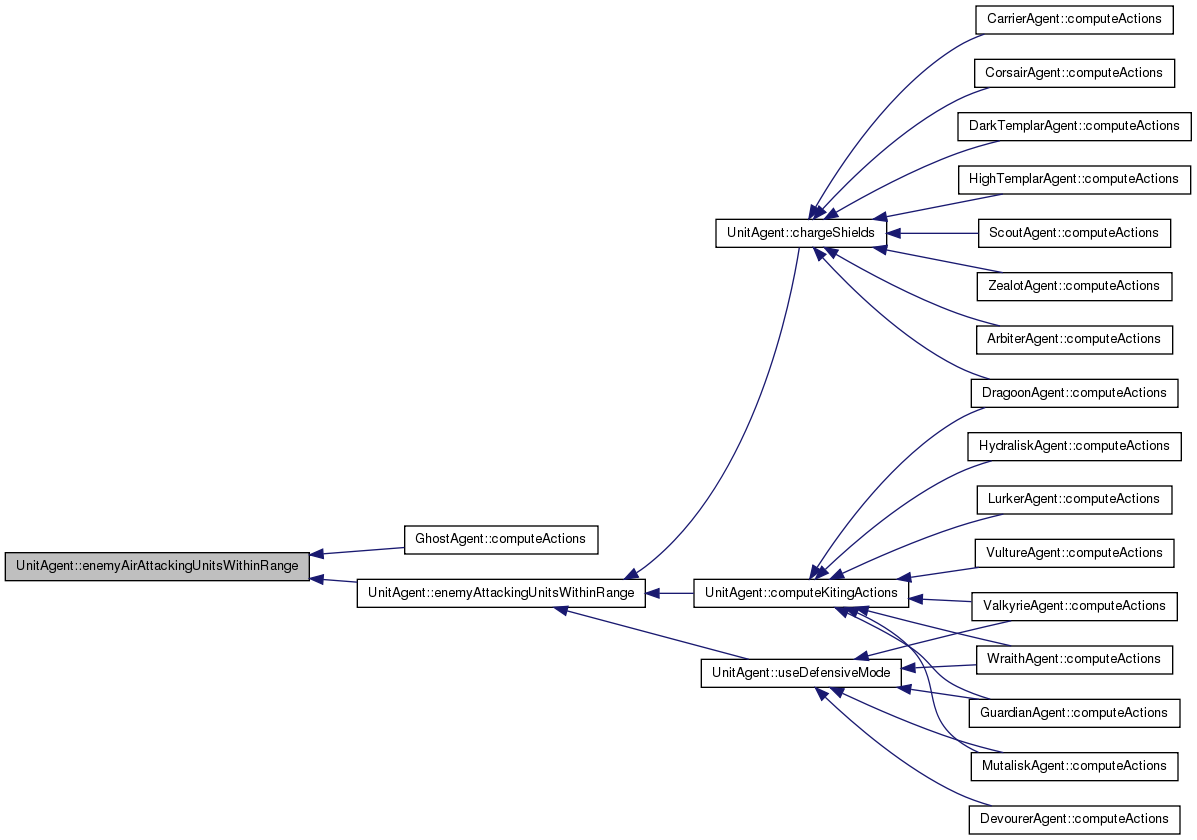

int UnitAgent::enemyAirAttackingUnitsWithinRange	(	TilePosition	center,
		int	maxRange
	)

Returns the number of flying unit that are within maxRange of the center tile, and can attack the agent.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::enemyAirToGroundUnitsWithinRange ( int maxRange )

Returns the number of flying units that can target ground and are within maxRange of the agent.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::enemyAirUnitsWithinRange ( int maxRange )

Returns the number of flying units that are within maxRange of the agent.

Here is the call graph for this function:

int UnitAgent::enemyAttackingUnitsWithinRange ( )

Returns the number of enemy units and buildings that can attack and are within firerange of the agent.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::enemyAttackingUnitsWithinRange	(	int	maxRange,
		TilePosition	center
	)

Returns the number of enemy units and buildings that can attack and are within range of the center tile.

Here is the call graph for this function:

int UnitAgent::enemyAttackingUnitsWithinRange ( UnitType type )

Returns the number of enemy units and buildings that can attack and are within firerange of the specified unit type.

Here is the call graph for this function:

int UnitAgent::enemyGroundAttackingUnitsWithinRange	(	TilePosition	center,
		int	maxRange
	)

Returns the number of enemy ground units and buildings that are within maxRange of the center tile, and can attack the agent.

Here is the call graph for this function:

Here is the caller graph for this function:

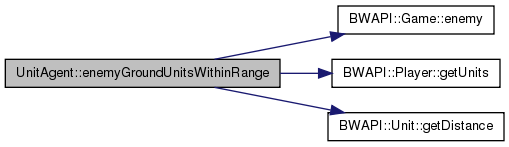

int UnitAgent::enemyGroundUnitsWithinRange ( int maxRange )

Returns the number of enemy ground units and buildings that are within maxRange of the agent.

Here is the call graph for this function:

Here is the caller graph for this function:

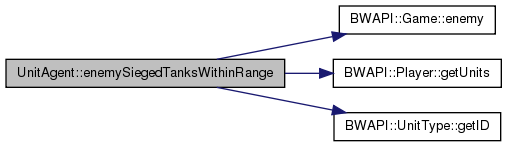

int UnitAgent::enemySiegedTanksWithinRange ( TilePosition center )

Calculates the number of enemy sieged Siege Tanks within Siege Tank range.

Here is the call graph for this function:

Here is the caller graph for this function:

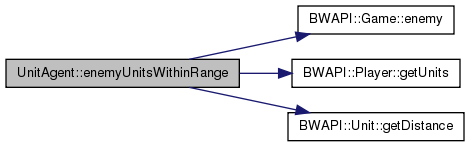

int UnitAgent::enemyUnitsWithinRange ( int maxRange )

Returns the number of enemy units and buildings that are within maxRange of the agent.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::friendlyUnitsWithinRange ( )

Returns the number of own units that are within 6 tiles range of the agent.

int UnitAgent::friendlyUnitsWithinRange ( int maxRange )

Returns the number of own units that are within maxRange of the agent.

Here is the call graph for this function:

int UnitAgent::friendlyUnitsWithinRange	(	TilePosition	tilePos,
		int	maxRange
	)

Returns the number of own units that are within maxRange of the specified tile.

Here is the call graph for this function:

int UnitAgent::getAirRange ( )

Returns the max firerange of the air weapon this agent has, or -1 if it cannot attack air.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::getAirRange ( UnitType type ) [static]

Returns the max firerange of the ground weapon a unit of the specified type has, or -1 if it cannot attack air.

Here is the call graph for this function:

Unit * UnitAgent::getClosestEnemyAirDefense ( int maxRange )

Returns the closest enemy turret, other attacking building or mechanical unit within maxRange that can attack air units, or NULL if not found.

Here is the call graph for this function:

Here is the caller graph for this function:

Unit * UnitAgent::getClosestEnemyTurret ( int maxRange )

Returns the closest enemy turret or other attacking building within maxRange, or NULL if not found.

Here is the call graph for this function:

Here is the caller graph for this function:

Unit * UnitAgent::getClosestOrganicEnemy ( int maxRange )

Returns the closest organic enemy unit within maxRange, or NULL if not found.

Here is the call graph for this function:

Here is the caller graph for this function:

Unit * UnitAgent::getClosestShieldedEnemy ( int maxRange )

Returns the closest enemy unit that is shielded and within maxRange, or NULL if not found.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::getGroundRange ( )

Returns the max firerange of the ground weapon this agent has, or -1 if it cannot attack ground.

Here is the call graph for this function:

Here is the caller graph for this function:

int UnitAgent::getGroundRange ( UnitType type ) [static]

Returns the max firerange of the ground weapon a unit of the specified type has, or -1 if it cannot attack ground.

Here is the call graph for this function:

string UnitAgent::getTypeName ( ) [virtual]

Returns the unique type name for unit agents.

Reimplemented from BaseAgent.

Reimplemented in ScienceVesselAgent, HighTemplarAgent, MarineAgent, DarkTemplarAgent, DefilerAgent, DropshipAgent, FirebatAgent, MedicAgent, VultureAgent, BattlecruiserAgent, GhostAgent, OverlordAgent, QueenAgent, WraithAgent, CorsairAgent, MutaliskAgent, ObserverAgent, ArbiterAgent, CarrierAgent, DevourerAgent, DragoonAgent, GoliathAgent, GuardianAgent, HydraliskAgent, InfestedTerranAgent, LurkerAgent, ReaverAgent, ScourgeAgent, ScoutAgent, ShuttleAgent, UltraliskAgent, ValkyrieAgent, ZealotAgent, ZerglingAgent, and SiegeTankAgent.

bool UnitAgent::isAttacking ( ) [virtual]

Returns true if this agent is used to attack the enemy.

Reimplemented from BaseAgent.

Here is the caller graph for this function:

bool UnitAgent::isBunkered ( )

Returns true if this agent is inside a Terran Bunker.

Reimplemented in MarineAgent, and FirebatAgent.

Here is the caller graph for this function:

bool UnitAgent::isDefending ( ) [virtual]

Returns true if this agent is defending the own base.

Reimplemented from BaseAgent.

Here is the caller graph for this function:

bool UnitAgent::isExploring ( ) [virtual]

Returns true if this agent is used to explore the game world.

Reimplemented from BaseAgent.

Here is the caller graph for this function:

void UnitAgent::printInfo ( ) [virtual]

Used to print info about this agent to the screen.

Reimplemented from BaseAgent.

Here is the call graph for this function:

void UnitAgent::setGoal ( TilePosition goal ) [virtual]

Sets the goal for this unit. Goals are set from either the SquadCommander for attacking or defending units, or from ExplorationManager for explore units.

Reimplemented from BaseAgent.

Reimplemented in ReaverAgent.

Here is the call graph for this function:
