#include <Requirement.h>

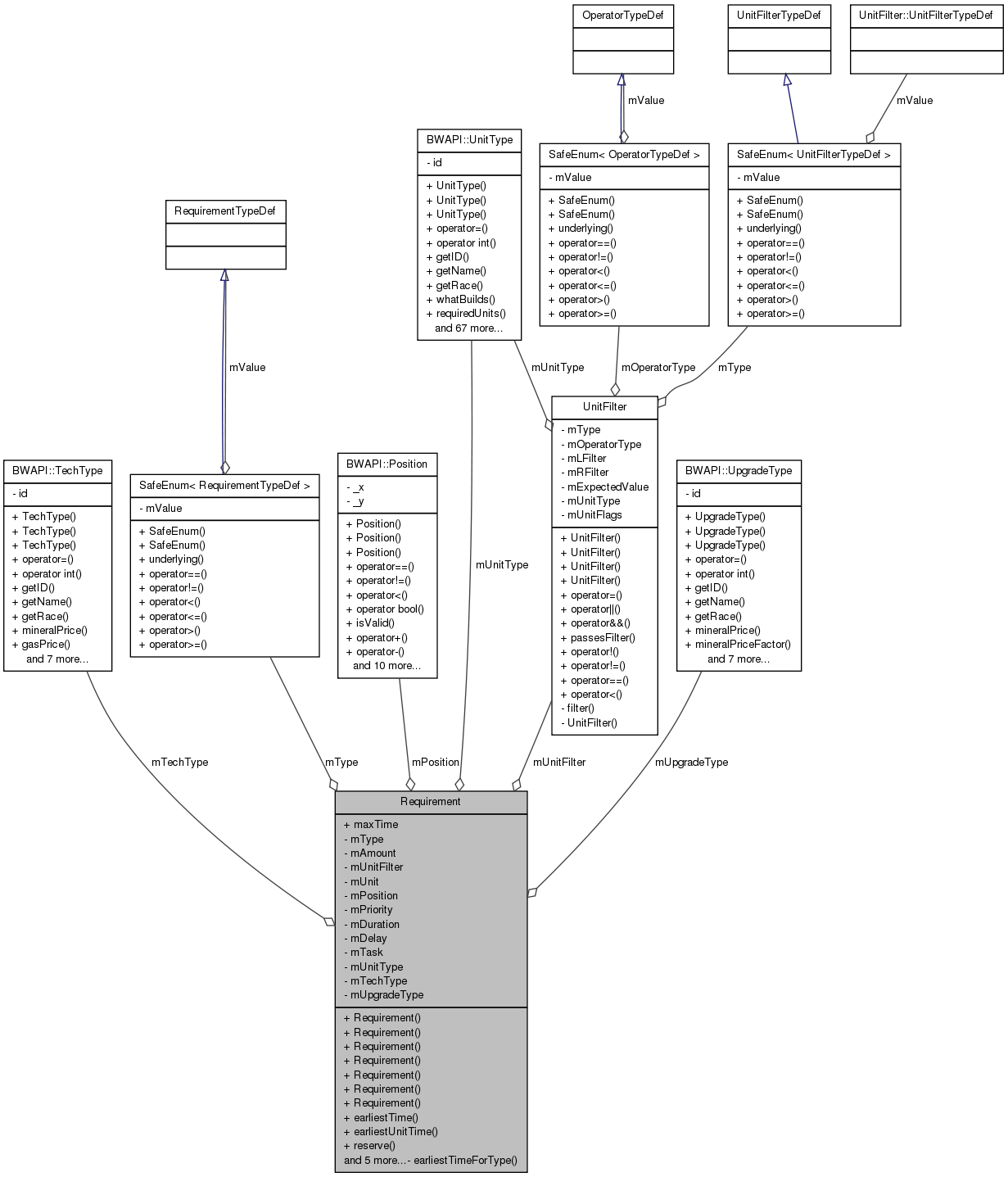

Collaboration diagram for Requirement:

Public Member Functions
	Requirement (RequirementType type, int amount)
	Requirement (int priority, int duration, Unit unit, Position position)
	Requirement (int priority, int duration, UnitFilter unitFilter, Position position)
	Requirement (TaskPointer task)
	Requirement (BWAPI::UnitType unit)
	Requirement (BWAPI::TechType tech)
	Requirement (BWAPI::UpgradeType upgrade, int level)
int	earliestTime ()
std::map< int, int >	earliestUnitTime (int startTime, int endTime, std::set< Unit > &currentUnits)
void	reserve (int frameTime)
RequirementType	getType ()
bool	unitRequirement ()
Unit	getUnit () const
int	getDelay ()
bool	operator== (const Requirement &other) const
bool	operator< (const Requirement &other) const
Static Public Attributes
static const int	maxTime = std::numeric_limits<int>::max()
Private Member Functions
int	earliestTimeForType (BWAPI::UnitType unitType)
Private Attributes
RequirementType	mType
int	mAmount
UnitFilter	mUnitFilter
Unit	mUnit
Position	mPosition
int	mPriority
int	mDuration
int	mDelay
TaskPointer	mTask
BWAPI::UnitType	mUnitType
BWAPI::TechType	mTechType
BWAPI::UpgradeType	mUpgradeType

Detailed Description

Definition at line 33 of file Requirement.h.

Constructor & Destructor Documentation

Requirement::Requirement	(	RequirementType	type,
		int	amount
	)

Definition at line 13 of file Requirement.cpp.

        : mType(type)
        , mAmount(amount)
        , mPosition(BWAPI::Positions::None)
        , mUnit()
        , mUnitFilter()
        , mUnitType(BWAPI::UnitTypes::None)
        , mTechType(BWAPI::TechTypes::None)
        , mUpgradeType(BWAPI::UpgradeTypes::None)
        , mTask()
        , mPriority(0)
        , mDuration(0)
        , mDelay(0)
{
}

Requirement::Requirement	(	int	priority,
		int	duration,
		Unit	unit,
		Position	position
	)

Definition at line 29 of file Requirement.cpp.

        : mType(RequirementType::Unit)
        , mAmount(1)
        , mPosition(position)
        , mUnit(unit)
        , mUnitFilter()
        , mUnitType(BWAPI::UnitTypes::None)
        , mTechType(BWAPI::TechTypes::None)
        , mUpgradeType(BWAPI::UpgradeTypes::None)
        , mTask()
        , mPriority(priority)
        , mDuration(duration)
        , mDelay(0)
{
}

Requirement::Requirement	(	int	priority,
		int	duration,
		UnitFilter	unitFilter,
		Position	position
	)

Definition at line 45 of file Requirement.cpp.

        : mType(RequirementType::UnitFilter)
        , mAmount(1)
        , mPosition(position)
        , mUnit()
        , mUnitFilter(unitFilter)
        , mUnitType(BWAPI::UnitTypes::None)
        , mTechType(BWAPI::TechTypes::None)
        , mUpgradeType(BWAPI::UpgradeTypes::None)
        , mTask()
        , mPriority(priority)
        , mDuration(duration)
        , mDelay(0)
{
}

Requirement::Requirement ( TaskPointer task )

Definition at line 61 of file Requirement.cpp.

        : mType(RequirementType::Task)
        , mAmount(0)
        , mPosition(BWAPI::Positions::None)
        , mUnit()
        , mUnitFilter()
        , mUnitType(BWAPI::UnitTypes::None)
        , mTechType(BWAPI::TechTypes::None)
        , mUpgradeType(BWAPI::UpgradeTypes::None)
        , mTask(task)
        , mPriority(0)
        , mDuration(0)
        , mDelay(0)
{
}

Requirement::Requirement ( BWAPI::UnitType unit )

Definition at line 77 of file Requirement.cpp.

        : mType(RequirementType::RequiredForUnit)
        , mAmount(0)
        , mPosition(BWAPI::Positions::None)
        , mUnit()
        , mUnitFilter()
        , mUnitType(unit)
        , mTechType(BWAPI::TechTypes::None)
        , mUpgradeType(BWAPI::UpgradeTypes::None)
        , mTask()
        , mPriority(0)
        , mDuration(0)
        , mDelay(0)
{
}

Requirement::Requirement ( BWAPI::TechType tech )

Definition at line 93 of file Requirement.cpp.

        : mType(RequirementType::RequiredForTech)
        , mAmount(0)
        , mPosition(BWAPI::Positions::None)
        , mUnit()
        , mUnitFilter()
        , mUnitType(BWAPI::UnitTypes::None)
        , mTechType(tech)
        , mUpgradeType(BWAPI::UpgradeTypes::None)
        , mTask()
        , mPriority(0)
        , mDuration(0)
        , mDelay(0)
{
}

Requirement::Requirement	(	BWAPI::UpgradeType	upgrade,
		int	level
	)

Definition at line 109 of file Requirement.cpp.

        : mType(RequirementType::RequiredForUpgrade)
        , mAmount(level)
        , mPosition(BWAPI::Positions::None)
        , mUnit()
        , mUnitFilter()
        , mUnitType(BWAPI::UnitTypes::None)
        , mTechType(BWAPI::TechTypes::None)
        , mUpgradeType(upgrade)
        , mTask()
        , mPriority(0)
        , mDuration(0)
        , mDelay(0)
{
}

Member Function Documentation

int Requirement::earliestTime ( )

Definition at line 220 of file Requirement.cpp.

References earliestTimeForType(), RequirementTypeDef::Gas, Singleton< T >::Instance(), mAmount, maxTime, RequirementTypeDef::Mineral, mTask, mTechType, mType, mUnitType, mUpgradeType, BWAPI::UpgradeTypes::Protoss_Air_Armor, BWAPI::UpgradeTypes::Protoss_Air_Weapons, BWAPI::UnitTypes::Protoss_Cybernetics_Core, BWAPI::UnitTypes::Protoss_Fleet_Beacon, BWAPI::UpgradeTypes::Protoss_Ground_Armor, BWAPI::UpgradeTypes::Protoss_Ground_Weapons, BWAPI::UpgradeTypes::Protoss_Plasma_Shields, BWAPI::UnitTypes::Protoss_Templar_Archives, RequirementTypeDef::RequiredForTech, RequirementTypeDef::RequiredForUnit, RequirementTypeDef::RequiredForUpgrade, BWAPI::UnitType::requiredUnits(), RequirementTypeDef::Supply, RequirementTypeDef::Task, RequirementTypeDef::Time, BWAPI::TechType::whatResearches(), and BWAPI::UpgradeType::whatUpgrades().

{
        if(mType == RequirementType::Mineral)
                return ResourceTracker::Instance().earliestMineralAvailability(mAmount);
        else if(mType == RequirementType::Gas)
                return ResourceTracker::Instance().earliestGasAvailability(mAmount);
        else if(mType == RequirementType::Supply)
                return ResourceTracker::Instance().earliestSupplyAvailability(mAmount);
        else if(mType == RequirementType::Time)
                return mAmount;
        else if(mType == RequirementType::Task)
                return mTask->getEndTime();
        else if(mType == RequirementType::RequiredForUnit)
        {
                int latestTime = 0;

                for(std::map<BWAPI::UnitType, int>::const_iterator it = mUnitType.requiredUnits().begin(); it != mUnitType.requiredUnits().end(); ++it)
                        latestTime = std::max(latestTime, earliestTimeForType(it->first));

                return latestTime;
        }
        else if(mType == RequirementType::RequiredForUpgrade)
        {
                int latestTime = earliestTimeForType(mUpgradeType.whatUpgrades());

                if(mAmount > 1)
                {
                        if(mUpgradeType == BWAPI::UpgradeTypes::Protoss_Ground_Weapons || mUpgradeType == BWAPI::UpgradeTypes::Protoss_Ground_Armor)
                                latestTime = std::max(latestTime, earliestTimeForType(BWAPI::UnitTypes::Protoss_Templar_Archives));
                        else if(mUpgradeType == BWAPI::UpgradeTypes::Protoss_Plasma_Shields)
                                latestTime = std::max(latestTime, earliestTimeForType(BWAPI::UnitTypes::Protoss_Cybernetics_Core));
                        else if(mUpgradeType == BWAPI::UpgradeTypes::Protoss_Air_Armor || mUpgradeType == BWAPI::UpgradeTypes::Protoss_Air_Weapons)
                                latestTime = std::max(latestTime, earliestTimeForType(BWAPI::UnitTypes::Protoss_Fleet_Beacon));
                }

                return latestTime;
        }
        else if(mType == RequirementType::RequiredForTech)
                return earliestTimeForType(mTechType.whatResearches());

        return Requirement::maxTime;
}

Here is the call graph for this function:

int Requirement::earliestTimeForType ( BWAPI::UnitType unitType ) [private]

Definition at line 352 of file Requirement.cpp.

References BWAPI::Broodwar, Singleton< T >::Instance(), and maxTime.

Referenced by earliestTime().

{
        int thisTime = Requirement::maxTime;
        for each(Unit requiredUnit in UnitTracker::Instance().selectAllUnits(unitType))
        {
                if(requiredUnit->isCompleted())
                        return BWAPI::Broodwar->getFrameCount();
                else
                {
                        int completeTime = requiredUnit->getCompletedTime();
                        if(completeTime < thisTime)
                                thisTime = completeTime;
                }
        }

        return thisTime;
}

Here is the call graph for this function:

Here is the caller graph for this function:

std::map< int, int > Requirement::earliestUnitTime	(	int	startTime,
		int	endTime,
		std::set< Unit > &	currentUnits
	)

Definition at line 263 of file Requirement.cpp.

References Singleton< T >::Instance(), maxTime, mDelay, mDuration, mPosition, mPriority, mType, mUnit, mUnitFilter, BWAPI::Positions::None, UnitFilter::passesFilter(), and RequirementTypeDef::Unit.

{
        const bool &allowAnyBlockLength = mDuration == Requirement::maxTime;

        if(mType == RequirementType::Unit)
        {
                if(currentUnits.count(mUnit) > 0)
                        return std::map<int, int>();

                if(mPosition != BWAPI::Positions::None)
                        mDelay = int((mUnit->getPosition().getApproxDistance(mPosition) * 1.6) / mUnit->getType().topSpeed()) + 15;

                return TaskManager::Instance().earliestFreeTimes(mUnit, mPriority, startTime - mDelay, endTime, mDuration, allowAnyBlockLength);
        }

        std::map<int, int> bestTimes;
        int bestStartTime = Requirement::maxTime;
        int bestDelay = Requirement::maxTime;

        for each(Unit unit in UnitTracker::Instance().selectAllUnits())
        {
                if(currentUnits.count(unit) > 0)
                        continue;

                if(!mUnitFilter.passesFilter(unit))//TODO: only checks if it currently passes the filter, but some it can tell when in the future it will pass, might be worth implementing
                        continue;

                int delay = 0;
                if(mPosition != BWAPI::Positions::None)
                {
                        if(!unit->hasPath(mPosition))
                                continue;

                        delay = int((unit->getPosition().getApproxDistance(mPosition) * 1.6) / unit->getType().topSpeed()) + 15;
                }

                // If the delay for this unit pushes it outside the endtime, continue
                if(mDuration != Requirement::maxTime && startTime + mDuration + delay > endTime)
                        continue;

                const std::map<int, int> &currentTimes = TaskManager::Instance().earliestFreeTimes(unit, mPriority, startTime - delay, endTime, mDuration + delay, allowAnyBlockLength);
                if(!currentTimes.empty())
                {
                        std::map<int, int> currentTimesPlusDelay;
                        for(std::map<int, int>::const_iterator it = currentTimes.begin(); it != currentTimes.end(); ++it)
                                currentTimesPlusDelay[it->first + delay] = it->second;

                        // Find the earliest time in these blocks
                        std::map<int, int>::const_iterator it = currentTimesPlusDelay.begin();
                        if(it != currentTimesPlusDelay.end())
                        {
                                // Save it if its the best we have found, also prefer if the delay is shorter so it
                                // doesn't choose a unit really far away even though it will make it in time
                                if(it->first < bestStartTime || (it->first == bestStartTime && delay < bestDelay))
                                {
                                        mUnit = unit;
                                        mDelay = delay;

                                        bestTimes = currentTimesPlusDelay;
                                        bestStartTime = it->first;
                                        bestDelay = delay;
                                }
                        }
                }
        }

        return bestTimes;
}

Here is the call graph for this function:

int Requirement::getDelay ( ) [inline]

Definition at line 56 of file Requirement.h.

References mDelay.

{ return mDelay; }

RequirementType Requirement::getType ( ) [inline]

Definition at line 50 of file Requirement.h.

References mType.

{ return mType; }

Unit Requirement::getUnit ( ) const [inline]

Definition at line 54 of file Requirement.h.

References mUnit.

{ return mUnit; }

bool Requirement::operator< ( const Requirement & other ) const

Definition at line 155 of file Requirement.cpp.

References mAmount, mDelay, mDuration, mPosition, mPriority, mTask, mTechType, mType, mUnit, mUnitFilter, mUnitType, and mUpgradeType.

{
        if(mType < other.mType)
                return true;
        else if(mType != other.mType)
                return false;

        if(mAmount < other.mAmount)
                return true;
        else if(mAmount != other.mAmount)
                return false;

        if(mUnitFilter < other.mUnitFilter)
                return true;
        else if(mUnitFilter != other.mUnitFilter)
                return false;

        if(mUnit < other.mUnit)
                return true;
        else if(mUnit != other.mUnit)
                return false;

        if(mPosition < other.mPosition)
                return true;
        else if(mPosition != other.mPosition)
                return false;

        if(mPriority < other.mPriority)
                return true;
        else if(mPriority != other.mPriority)
                return false;

        if(mDuration < other.mDuration)
                return true;
        else if(mDuration != other.mDuration)
                return false;

        if(mDelay < other.mDelay)
                return true;
        else if(mDelay != other.mDelay)
                return false;

        if(mTask < other.mTask)
                return true;
        else if(mTask != other.mTask)
                return false;

        if(mUnitType < other.mUnitType)
                return true;
        else if(mUnitType != other.mUnitType)
                return false;

        if(mTechType < other.mTechType)
                return true;
        else if(mTechType != other.mTechType)
                return false;

        if(mUpgradeType < other.mUpgradeType)
                return true;
        else if(mUpgradeType != other.mUpgradeType)
                return false;

        return false;
}

bool Requirement::operator== ( const Requirement & other ) const

Definition at line 125 of file Requirement.cpp.

References mAmount, mDelay, mDuration, mPosition, mPriority, mTask, mTechType, mType, mUnit, mUnitFilter, mUnitType, and mUpgradeType.

{
        if(mType != other.mType)
                return false;
        else if(mAmount != other.mAmount)
                return false;
        else if(mUnitFilter != other.mUnitFilter)
                return false;
        else if(mUnit != other.mUnit)
                return false;
        else if(mPosition != other.mPosition)
                return false;
        else if(mPriority != other.mPriority)
                return false;
        else if(mDuration != other.mDuration)
                return false;
        else if(mDelay != other.mDelay)
                return false;
        else if(mTask != other.mTask)
                return false;
        else if(mUnitType != other.mUnitType)
                return false;
        else if(mTechType != other.mTechType)
                return false;
        else if(mUpgradeType != other.mUpgradeType)
                return false;
        else
                return true;
}

void Requirement::reserve ( int frameTime )

Definition at line 332 of file Requirement.cpp.

References RequirementTypeDef::Gas, Singleton< T >::Instance(), mAmount, mDuration, RequirementTypeDef::Mineral, mPriority, mType, mUnit, RequirementTypeDef::Supply, SafeEnum< def, inner >::underlying(), RequirementTypeDef::Unit, and RequirementTypeDef::UnitFilter.

{
        switch(mType.underlying())
        {
        case RequirementType::Mineral:
                ResourceTracker::Instance().reservePlannedMinerals(frameTime, mAmount);
                break;
        case RequirementType::Gas:
                ResourceTracker::Instance().reservePlannedGas(frameTime, mAmount);
                break;
        case RequirementType::Supply:
                ResourceTracker::Instance().reservePlannedSupply(frameTime, mAmount);
                break;
        case RequirementType::Unit:
        case RequirementType::UnitFilter:
                TaskManager::Instance().reserveUnit(mUnit, frameTime, mPriority, mDuration);
                break;
        }
}

Here is the call graph for this function:

bool Requirement::unitRequirement ( ) [inline]

Definition at line 52 of file Requirement.h.

References mType, RequirementTypeDef::Unit, and RequirementTypeDef::UnitFilter.

{ return mType == RequirementType::Unit || mType == RequirementType::UnitFilter; }

Member Data Documentation

int Requirement::mAmount [private]

Definition at line 65 of file Requirement.h.

Referenced by earliestTime(), operator<(), operator==(), and reserve().

const int Requirement::maxTime = std::numeric_limits<int>::max() [static]

Definition at line 61 of file Requirement.h.

Referenced by Task::dispatchTime(), TaskManagerClass::earliestFreeTimes(), ResourceTrackerClass::earliestGasAvailability(), ResourceTrackerClass::earliestMineralAvailability(), ResourceTrackerClass::earliestSupplyAvailability(), RequirementGroup::earliestTime(), earliestTime(), earliestTimeForType(), earliestUnitTime(), TechTask::getEndTime(), TrainTask::getEndTime(), UpgradeTask::getEndTime(), IdleTask::getEndTime(), DefaultSquadTask::getEndTime(), MineBlockingMineralTask::getEndTime(), ConstructionTask::getEndTime(), GatherTask::getEndTime(), DefenseSquadTask::getEndTime(), WorkerScoutTask::getEndTime(), ObserverScoutTask::getEndTime(), ConstructionTask::preUpdate(), RequirementGroup::recurseForUnitTime(), ResourceTrackerClass::reserveCurrentGas(), ResourceTrackerClass::reserveCurrentMinerals(), ResourceTrackerClass::reserveCurrentSupply(), ResourceTrackerClass::reservePlannedGas(), ResourceTrackerClass::reservePlannedMinerals(), ResourceTrackerClass::reservePlannedSupply(), Task::startTime(), ConstructionTask::updateRequirements(), GatherTask::updateRequirements(), MineBlockingMineralTask::updateRequirements(), WorkerScoutTask::updateRequirements(), ObserverScoutTask::updateRequirements(), DefenseSquadTask::updateRequirements(), and DefaultSquadTask::updateRequirements().

int Requirement::mDelay [private]

Definition at line 73 of file Requirement.h.

Referenced by earliestUnitTime(), getDelay(), operator<(), and operator==().

int Requirement::mDuration [private]

Definition at line 72 of file Requirement.h.

Referenced by earliestUnitTime(), operator<(), operator==(), and reserve().

Position Requirement::mPosition [private]

Definition at line 70 of file Requirement.h.

Referenced by earliestUnitTime(), operator<(), and operator==().

int Requirement::mPriority [private]

Definition at line 71 of file Requirement.h.

Referenced by earliestUnitTime(), operator<(), operator==(), and reserve().

TaskPointer Requirement::mTask [private]

Definition at line 75 of file Requirement.h.

Referenced by earliestTime(), operator<(), and operator==().

BWAPI::TechType Requirement::mTechType [private]

Definition at line 78 of file Requirement.h.

Referenced by earliestTime(), operator<(), and operator==().

RequirementType Requirement::mType [private]

Definition at line 64 of file Requirement.h.

Referenced by earliestTime(), earliestUnitTime(), getType(), operator<(), operator==(), reserve(), and unitRequirement().

Unit Requirement::mUnit [private]

Definition at line 68 of file Requirement.h.

Referenced by earliestUnitTime(), getUnit(), operator<(), operator==(), and reserve().

UnitFilter Requirement::mUnitFilter [private]

Definition at line 67 of file Requirement.h.

Referenced by earliestUnitTime(), operator<(), and operator==().

BWAPI::UnitType Requirement::mUnitType [private]

Definition at line 77 of file Requirement.h.

Referenced by earliestTime(), operator<(), and operator==().

BWAPI::UpgradeType Requirement::mUpgradeType [private]

Definition at line 79 of file Requirement.h.

Referenced by earliestTime(), operator<(), and operator==().

The documentation for this class was generated from the following files:

Skynet/Skynet/Requirement.h
Skynet/Skynet/Requirement.cpp

Public Member Functions

Static Public Attributes

Private Member Functions

Private Attributes

Detailed Description

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation
