#include <Commander.h>

Collaboration diagram for Commander:

Public Member Functions
	~Commander ()
void	computeActions ()
bool	shallEngage ()
void	updateGoals ()
void	unitCreated (BaseAgent *agent)
void	unitDestroyed (BaseAgent *agent)
bool	needUnit (UnitType type)
Squad *	getSquad (int id)
vector< Squad * >	getSquads ()
TilePosition	getClosestEnemyBuilding (TilePosition start)
int	noOffensiveSquadsWithin (TilePosition center, int maxRange)
bool	checkWorkersAttack (BaseAgent *base)
void	assistBuilding (BaseAgent *building)
void	assistWorker (BaseAgent *worker)
int	enemyUnitsWithinRange (TilePosition start, int range)
void	handleCloakedEnemy (TilePosition pos, Squad *squad)
void	checkRemovableObstacles ()
void	forceAttack ()
void	printInfo ()
TilePosition	findUnfortifiedChokePoint ()
TilePosition	findChokePoint ()
bool	isPowered (TilePosition pos)
bool	isBuildable (TilePosition pos)
bool	checkUnfinishedBuildings ()
bool	checkRepairUnits ()
bool	isImportantUnit (Unit *unit)
void	repair (BaseAgent *agent)
void	finishBuild (BaseAgent *agent)
void	addBunkerSquad ()
Static Public Member Functions
static Commander *	getInstance ()
Public Attributes
int	ownDeadScore
int	enemyDeadScore
Protected Member Functions
	Commander ()
TilePosition	findOffensiveSquadPosition (TilePosition closeEnemy)
Protected Attributes
vector< Squad * >	squads
int	currentID
int	currentState
Static Protected Attributes
static Commander *	instance = NULL
static const int	DEFEND = 0
static const int	ATTACK = 1

Detailed Description

The Commander class is the heart of deciding high level strategies like when and where to engage the enemy. It is responsible for deciding when to attack the enemy, where to attack him, and when a retreat is the best option to do. All units are grouped into Squads, and the Commander directs the different Squads to attack or defend positions. Each Squad are in turn responsible for handle the task it has been assigned.

The Commander is implemented as a singleton class. Each class that needs to access Commander can request an instance, and all classes shares the same Commander instance.

Author: Johan Hagelback (johan.hagelback@gmail.com)

Constructor & Destructor Documentation

Commander::Commander ( ) [protected]

Here is the call graph for this function:

Here is the caller graph for this function:

Commander::~Commander ( )

Destructor.

Member Function Documentation

void Commander::addBunkerSquad ( )

Adds a bunker squad when a Terran Bunker has been created.

Here is the call graph for this function:

Here is the caller graph for this function:

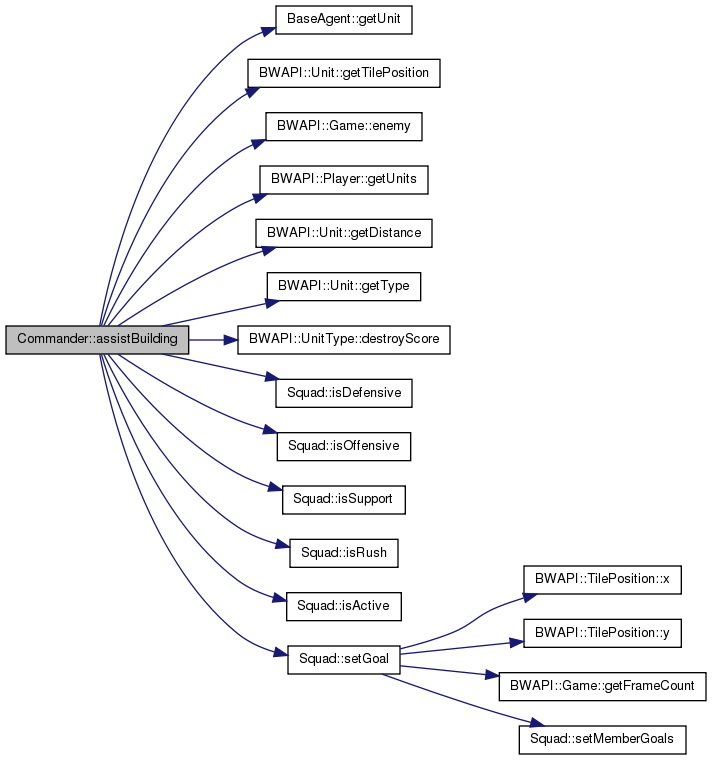

void Commander::assistBuilding ( BaseAgent * building )

Tries to find a free squad to assist a building.

Here is the call graph for this function:

Here is the caller graph for this function:

void Commander::assistWorker ( BaseAgent * worker )

Tries to find a free squad to assist a worker that is under attack.

Here is the call graph for this function:

Here is the caller graph for this function:

void Commander::checkRemovableObstacles ( )

Checks if there are any removable obstacles nearby, i.e. minerals with less than 20 resources left.

Here is the call graph for this function:

Here is the caller graph for this function:

bool Commander::checkRepairUnits ( )

Check if there are any important buildings or units to repair. Terran only.

Here is the call graph for this function:

Here is the caller graph for this function:

bool Commander::checkUnfinishedBuildings ( )

Checks if there are any unfinished buildings that does not have an SCV working on them. Terran only.

Here is the call graph for this function:

Here is the caller graph for this function:

bool Commander::checkWorkersAttack ( BaseAgent * base )

Checks if workers needs to attack. Happens if base is under attack and no offensive units are available.

Here is the call graph for this function:

Here is the caller graph for this function:

void Commander::computeActions ( )

Called each update to issue orders.

Here is the call graph for this function:

Here is the caller graph for this function:

int Commander::enemyUnitsWithinRange	(	TilePosition	start,
		int	range
	)

Counts the number of enemy units withing range from the start position.

Here is the call graph for this function:

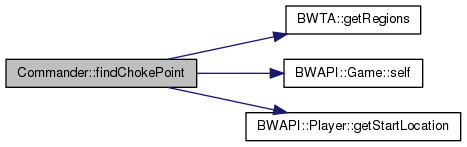

TilePosition Commander::findChokePoint ( )

Searches for and returns a good chokepoint position to defend the territory.

Here is the call graph for this function:

Here is the caller graph for this function:

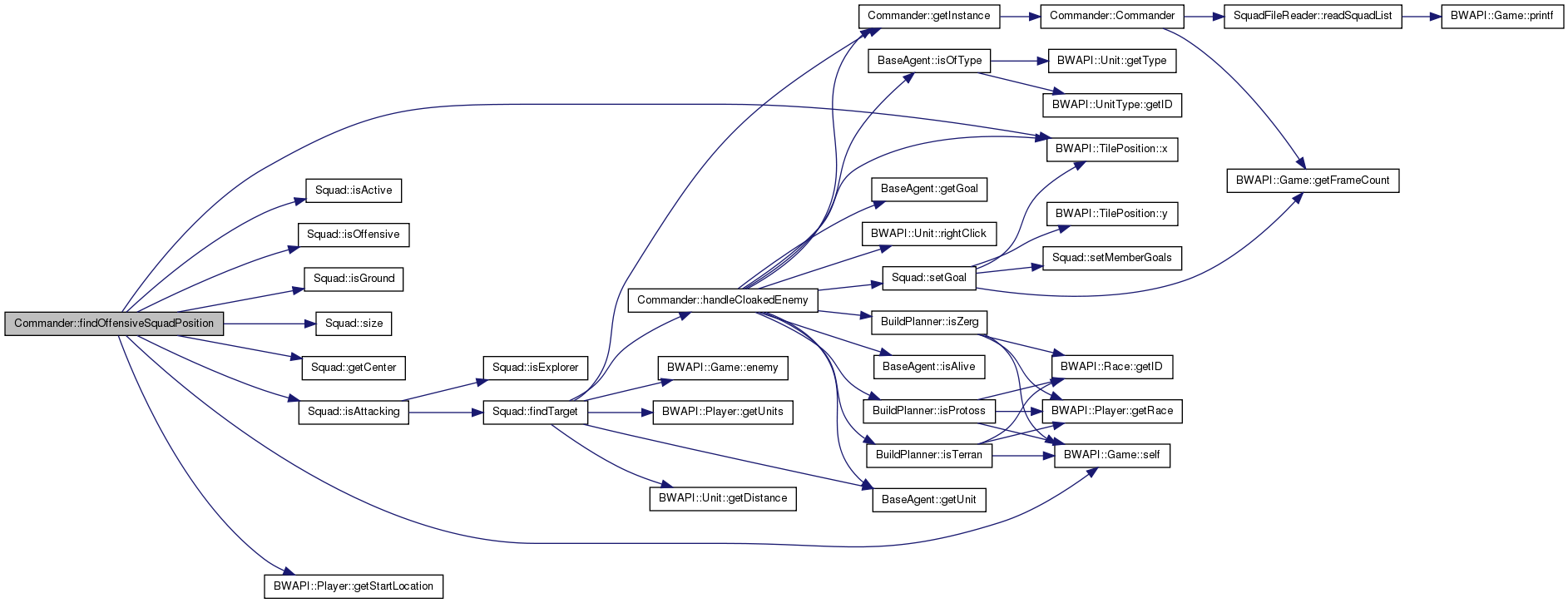

TilePosition Commander::findOffensiveSquadPosition ( TilePosition closeEnemy ) [protected]

Used to find where offensive attackin ground squads are, so air squads doesnt get ahead of other squads when attacking.

Here is the call graph for this function:

Here is the caller graph for this function:

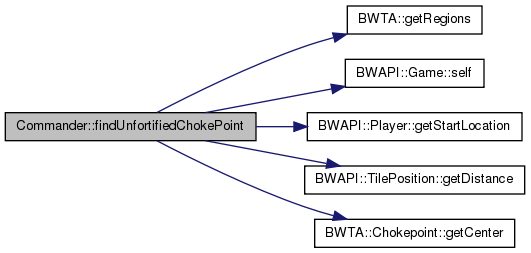

TilePosition Commander::findUnfortifiedChokePoint ( )

Searches for a chokepoint that is unfortified, i.e. does not contain for example a Bunker or defensive turret. Returns TilePosition(-1, -1) if no position was found.

Here is the call graph for this function:

void Commander::finishBuild ( BaseAgent * agent )

Assigns a worker to finish constructing an interrupted building. Terran only.

Here is the call graph for this function:

Here is the caller graph for this function:

void Commander::forceAttack ( )

Forces an attack, even if some squads are not full.

Here is the call graph for this function:

Here is the caller graph for this function:

TilePosition Commander::getClosestEnemyBuilding ( TilePosition start )

Returns the position of the closest enemy building from the start position, or TilePosition(-1,-1) if not found.

Here is the call graph for this function:

Here is the caller graph for this function:

Commander * Commander::getInstance ( ) [static]

Returns the instance of the class.

Here is the call graph for this function:

Here is the caller graph for this function:

Squad * Commander::getSquad ( int id )

Returns the Squad with the specified id, or NULL if not found.

Here is the caller graph for this function:

vector< Squad * > Commander::getSquads ( )

Returns all Squads.

Here is the caller graph for this function:

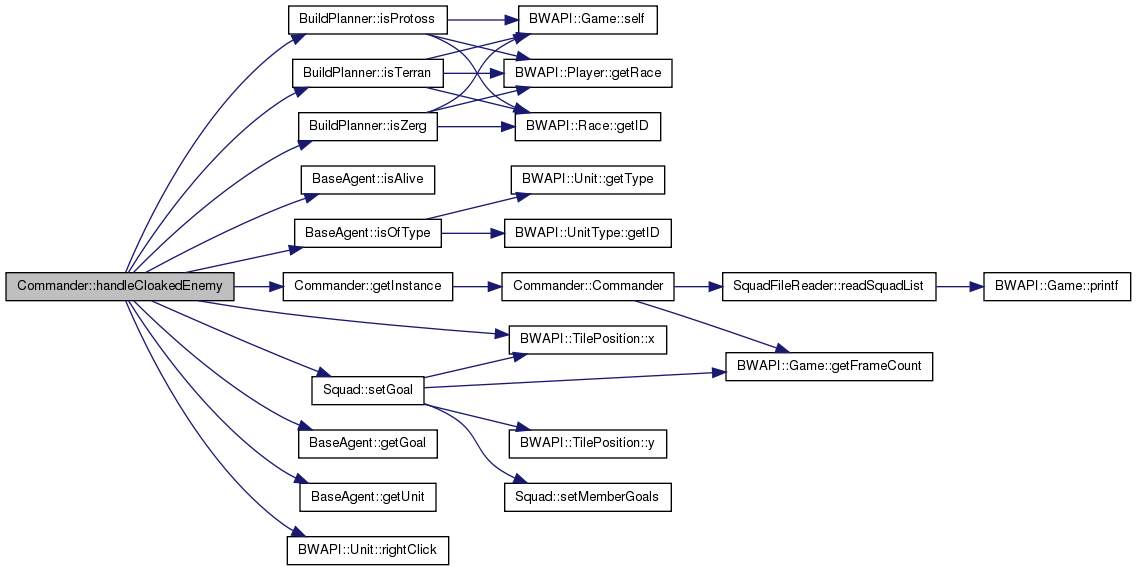

void Commander::handleCloakedEnemy	(	TilePosition	pos,
		Squad *	squad
	)

Called when own units are attacked by a cloaked enemy unit.

Here is the call graph for this function:

Here is the caller graph for this function:

bool Commander::isBuildable ( TilePosition pos )

Checks is a position is buildable.

Here is the call graph for this function:

bool Commander::isImportantUnit ( Unit * unit )

Returns true if the unit is important to assist, false if not. All buildings and large expensive units such as siege tanks and battlecruisers are considered important, while small units such as marines and vultures are not considered important. Terran only.

Here is the call graph for this function:
