#include <Agent.h>

Inheritance diagram for Agent:

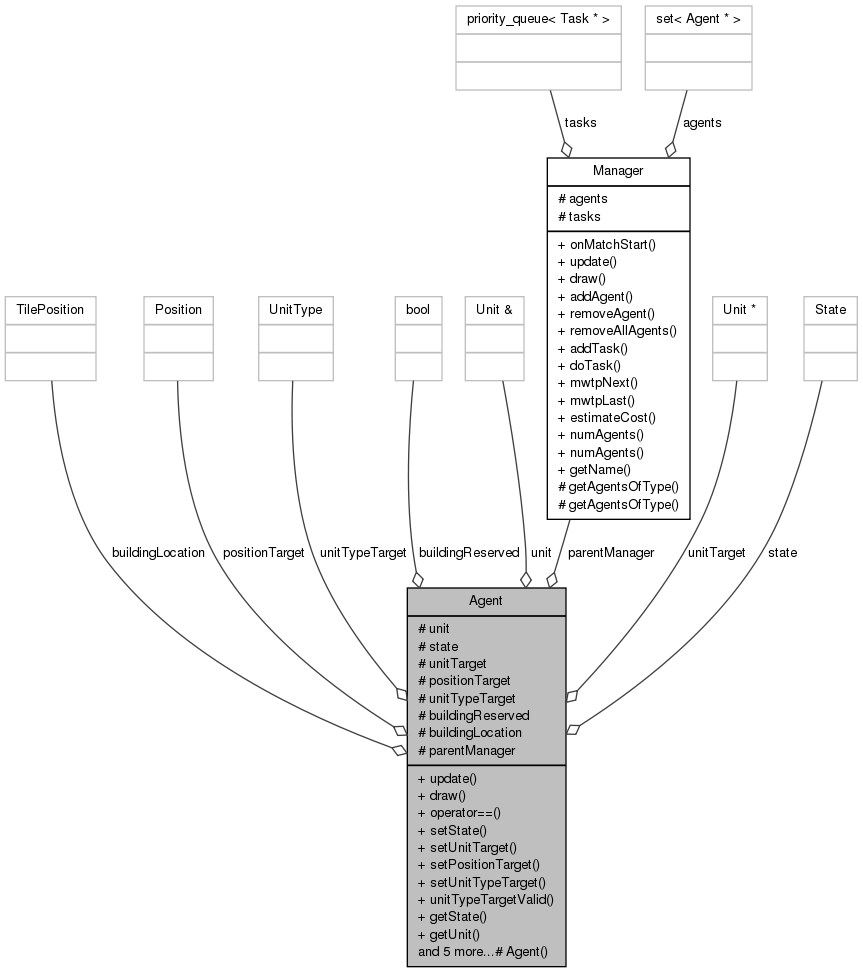

Collaboration diagram for Agent:

Public Member Functions
virtual void	update ()
virtual void	draw ()
bool	operator== (const Agent &other)
void	setState (State state)
void	setUnitTarget (BWAPI::Unit *target)
void	setPositionTarget (const BWAPI::Position &target)
void	setUnitTypeTarget (const BWAPI::UnitType &target)
bool	unitTypeTargetValid ()
const State	getState () const
const BWAPI::Unit &	getUnit () const
BWAPI::Unit &	getUnit ()
const BWAPI::Position &	getPositionTarget () const
const BWAPI::UnitType &	getUnitTypeTarget () const
BWAPI::Unit *	getUnitTarget () const
void	setParentManager (Manager *manager)
const std::string	getParentManagerName () const
Protected Member Functions
	Agent (BWAPI::Unit &u)
Protected Attributes
BWAPI::Unit &	unit
State	state
BWAPI::Unit *	unitTarget
BWAPI::Position	positionTarget
BWAPI::UnitType	unitTypeTarget
bool	buildingReserved
BWAPI::TilePosition	buildingLocation
Manager *	parentManager

Detailed Description

Definition at line 13 of file Agent.h.

Constructor & Destructor Documentation

Agent::Agent ( BWAPI::Unit & u ) [protected]

Definition at line 15 of file Agent.cpp.

    : unit(u)
    , state(IdleState)
    , unitTarget(NULL)
    , positionTarget()
    , unitTypeTarget(UnitTypes::None)
    , buildingReserved(false)
    , buildingLocation()
    , parentManager(NULL)
{ }

Member Function Documentation

void Agent::draw ( ) [virtual]

Definition at line 53 of file Agent.cpp.

References AttackState, BWAPI::Broodwar, GatherState, getParentManagerName(), positionTarget, state, StateStrings, unit, unitTarget, UnitTypeStrings, unitTypeTarget, and unitTypeTargetValid().

{
        const int px = unit.getPosition().x();
        const int py = unit.getPosition().y();
        const int radius = unit.getRight() - px;

        // Draw owner, state, type
        if (state != GatherState)
                Broodwar->drawTextMap(px, py, "(%s, %s%s)", getParentManagerName().c_str(),
                        StateStrings[state], unitTypeTargetValid() ? (string(", ") += string(UnitTypeStrings[unitTypeTarget.getID()])).c_str()
                                                                                                                :       "");

    // Note: drawing this stuff all the time clutters things up massively, but can be useful
    // TODO: look into adding a global chat flag to toggle this stuff (/debuginfo or something)
    if( 1 ) //unit.isSelected() )
    {
        Broodwar->drawCircleMap(px, py, radius, Colors::Yellow);

        // Draw line to position target if its valid
        if( positionTarget.isValid()
         && positionTarget != Positions::None
         && positionTarget != Positions::Unknown
         && positionTarget.x() != 0 && positionTarget.y() != 0 )
        {
            const int tx = positionTarget.x();
            const int ty = positionTarget.y();
            Broodwar->drawLineMap(px, py, tx, ty, Colors::Green);
            Broodwar->drawTextMap(tx, ty, "(%d, %d)", tx, ty);
        }

        // Draw a line to the unit target if its valid
        if( unitTarget != NULL )
        {
            const Position targetPos = unitTarget->getPosition();
            if( targetPos.isValid()
             && targetPos != Positions::None
             && targetPos != Positions::Unknown
             && targetPos.x() != 0 && targetPos.y() != 0 )
            {
                const int tx = unitTarget->getPosition().x();
                const int ty = unitTarget->getPosition().y();
                Broodwar->drawLineMap(px, py, tx, ty, Colors::Red);
                Broodwar->drawTextMap(tx, ty, "id: %x", unitTarget);
            }
        }
    }

        if (state == AttackState)
        {
                // Draw our attack range
                Position unitPosition = unit.getPosition();
                int x = unitPosition.x();
                int y = unitPosition.y();
                int attackRadius = unit.getType().seekRange();
                Broodwar->drawCircle(CoordinateType::Map, x, y, attackRadius, BWAPI::Colors::White);


        }

        // Draw our current target position
        Position targetPosition = unit.getTargetPosition();
        Broodwar->drawLineMap(unit.getPosition().x(), unit.getPosition().y(),
                targetPosition.x(), targetPosition.y(), Colors::Yellow);
}

Here is the call graph for this function:

const std::string Agent::getParentManagerName ( ) const

Definition at line 47 of file Agent.cpp.

References Manager::getName(), and parentManager.

Referenced by draw().

{
    return (parentManager != NULL) ?
        parentManager->getName() : "None";
}

Here is the call graph for this function:

Here is the caller graph for this function:

const BWAPI::Position& Agent::getPositionTarget ( ) const [inline]

Definition at line 55 of file Agent.h.

References positionTarget.

Referenced by Squad::update().

{ return positionTarget; }

Here is the caller graph for this function:

const State Agent::getState ( ) const [inline]

Definition at line 52 of file Agent.h.

References state.

Referenced by BuildManager::update().

{ return state; }

Here is the caller graph for this function:

const BWAPI::Unit& Agent::getUnit ( ) const [inline]

Definition at line 53 of file Agent.h.

References unit.

Referenced by CombatManager::addNewAgents(), ResourceManager::getClosestMineralPatch(), ResourceManager::getNumWorkersGathering(), GasManager::getNumWorkersGathering(), Strategizer::remap(), and Strategizer::updateAgentManagerMap().

{ return unit; }

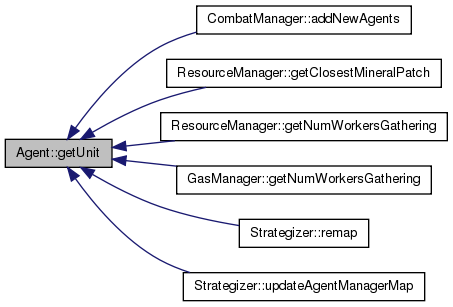

Here is the caller graph for this function:

BWAPI::Unit& Agent::getUnit ( ) [inline]

Definition at line 54 of file Agent.h.

References unit.

{ return unit; }

BWAPI::Unit* Agent::getUnitTarget ( ) const [inline]

Definition at line 57 of file Agent.h.

References unitTarget.

Referenced by Squad::update().

{ return unitTarget; }

Here is the caller graph for this function:

const BWAPI::UnitType& Agent::getUnitTypeTarget ( ) const [inline]

Definition at line 56 of file Agent.h.

References unitTypeTarget.

Referenced by Squad::update().

{ return unitTypeTarget; }

Here is the caller graph for this function:

bool Agent::operator== ( const Agent & other )

Definition at line 26 of file Agent.cpp.

References unit.

{
        // Compare by pointer values
        if( &(this->unit) == &(other.unit) )
                return true;
        else
                return false;
}

void Agent::setParentManager ( Manager * manager )

Definition at line 41 of file Agent.cpp.

References parentManager.

Referenced by Strategizer::redistributeAgents().

{
    if( manager != NULL )
        parentManager = manager;
}

Here is the caller graph for this function:

void Agent::setPositionTarget ( const BWAPI::Position & target ) [inline]

Definition at line 42 of file Agent.h.

References positionTarget.

Referenced by CombatManager::addNewAgents(), ResourceManager::makeAgentGatherMinerals(), Squad::update(), and CombatManager::update().

{ positionTarget = target; }

Here is the caller graph for this function:

void Agent::setState ( State state ) [inline]

Definition at line 40 of file Agent.h.

References state.

Referenced by ResourceManager::makeAgentGatherMinerals(), GasManager::update(), Squad::update(), and CombatManager::update().

{ this->state = state; }

Here is the caller graph for this function:

void Agent::setUnitTarget ( BWAPI::Unit * target ) [inline]

Definition at line 41 of file Agent.h.

References unitTarget.

Referenced by ResourceManager::makeAgentGatherMinerals(), and Squad::update().

{ unitTarget = target; }

Here is the caller graph for this function:

void Agent::setUnitTypeTarget ( const BWAPI::UnitType & target ) [inline]

Definition at line 43 of file Agent.h.

References unitTypeTarget.

Referenced by ResourceManager::makeAgentGatherMinerals(), GasManager::update(), and Squad::update().

{ unitTypeTarget = target; }

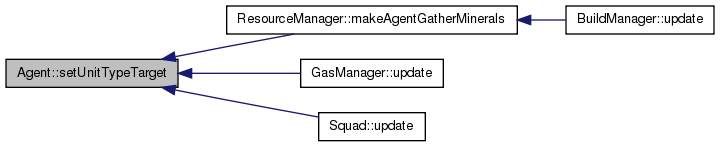

Here is the caller graph for this function:

bool Agent::unitTypeTargetValid ( ) [inline]

Definition at line 45 of file Agent.h.

References NUM_UNIT_TYPES, and unitTypeTarget.

Referenced by draw().

                                   {
                int typeTargetID = unitTypeTarget.getID();
                return typeTargetID >= 0 &&
                        typeTargetID < NUM_UNIT_TYPES &&
                        typeTargetID != BWAPI::UnitTypes::None;
        }

Here is the caller graph for this function:

void Agent::update ( ) [virtual]

Reimplemented in BarracksAgent, FirebatAgent, MarineAgent, MedicAgent, SCVAgent, SiegeTankAgent, CommandCenterAgent, RefineryAgent, ActorAgent, GroundAgent, and StructureAgent.

Definition at line 35 of file Agent.cpp.

References buildingLocation, BuildState, positionTarget, and state.

Referenced by Manager::update().

{
    if( state == BuildState )
        positionTarget = Position(buildingLocation);
}

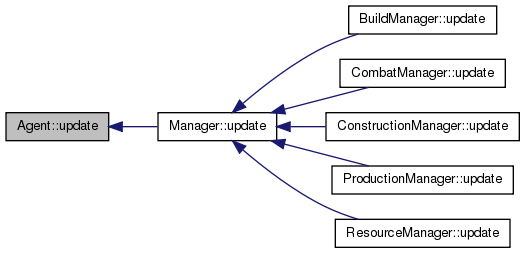

Here is the caller graph for this function:

Member Data Documentation

BWAPI::TilePosition Agent::buildingLocation [protected]

Definition at line 24 of file Agent.h.

Referenced by SCVAgent::update(), and update().

bool Agent::buildingReserved [protected]

Definition at line 23 of file Agent.h.

Referenced by SCVAgent::update().

Manager* Agent::parentManager [protected]

Definition at line 26 of file Agent.h.

Referenced by getParentManagerName(), and setParentManager().

BWAPI::Position Agent::positionTarget [protected]

Definition at line 20 of file Agent.h.

Referenced by draw(), getPositionTarget(), setPositionTarget(), ActorAgent::update(), MedicAgent::update(), and update().

State Agent::state [protected]

Definition at line 17 of file Agent.h.

Referenced by draw(), getState(), setState(), ActorAgent::update(), StructureAgent::update(), CommandCenterAgent::update(), MedicAgent::update(), SCVAgent::update(), and update().

BWAPI::Unit& Agent::unit [protected]

Definition at line 16 of file Agent.h.

Referenced by draw(), ActorAgent::getClosestPosition(), getUnit(), ActorAgent::isOccupiedPosition(), operator==(), ActorAgent::update(), StructureAgent::update(), CommandCenterAgent::update(), MedicAgent::update(), and SCVAgent::update().

BWAPI::Unit* Agent::unitTarget [protected]

Definition at line 19 of file Agent.h.

Referenced by draw(), getUnitTarget(), setUnitTarget(), and SCVAgent::update().

BWAPI::UnitType Agent::unitTypeTarget [protected]

Definition at line 21 of file Agent.h.

Referenced by draw(), getUnitTypeTarget(), setUnitTypeTarget(), unitTypeTargetValid(), StructureAgent::update(), and SCVAgent::update().

The documentation for this class was generated from the following files:

BasicAIModule/include/Agents/Agent.h
BasicAIModule/source/Agents/Agent.cpp
